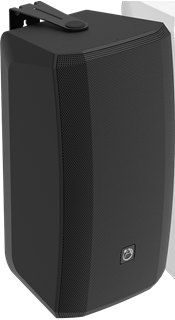

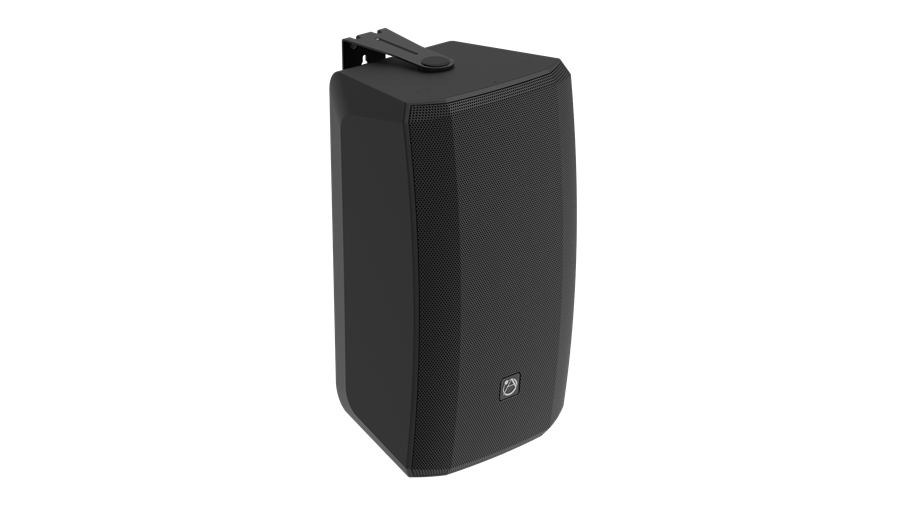

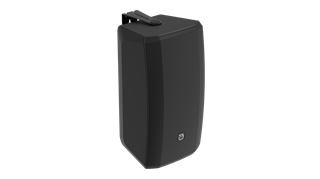

The AtlasIED AS-10T is a high performance, two-way Surface-Mount weather resistant loudspeaker boasting an exceptional performance-to-size ratio for distributed sound reinforcement applications where durability, modern, understated aesthetics, and outstanding sonic performance are prerequisites.

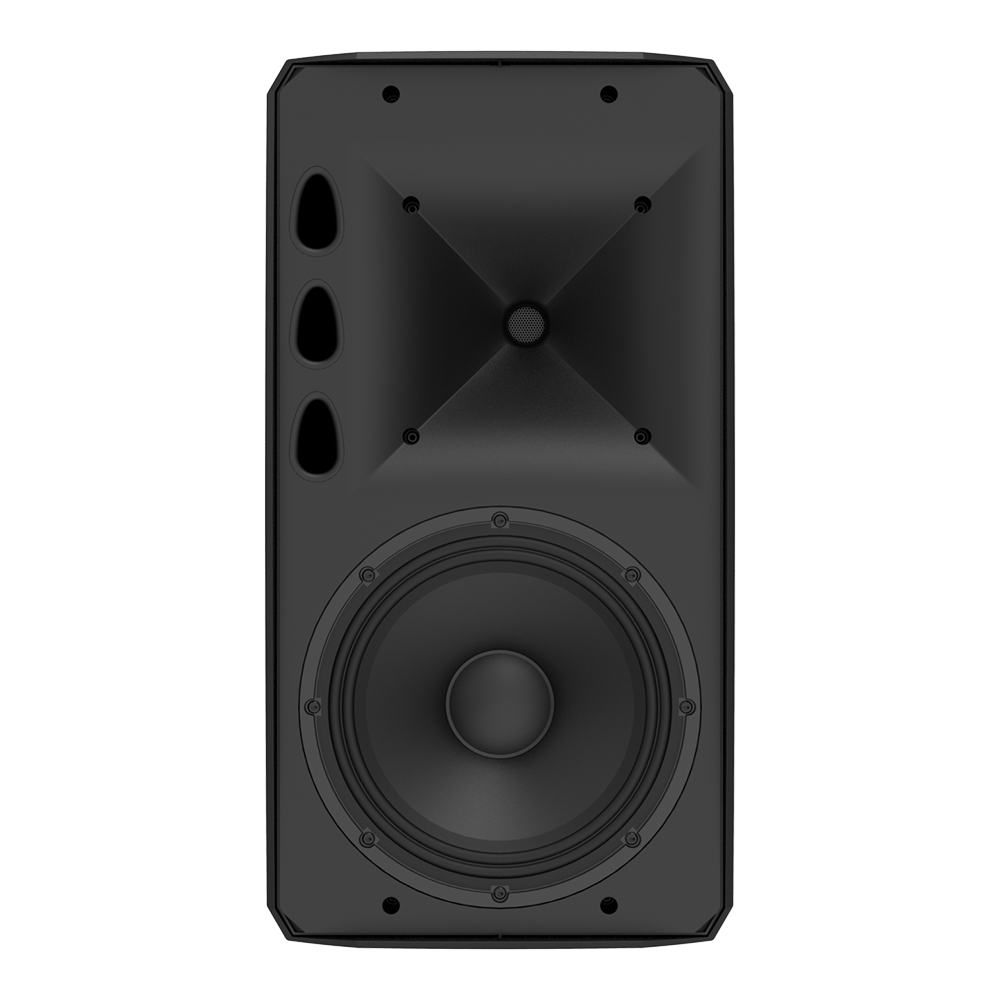

Featuring a high excursion 10" woofer, seamlessly transitioning to a 1" exit compression driver, the AS-10T delivers a consistent and accurate broadband frequency response, both on and off axis.

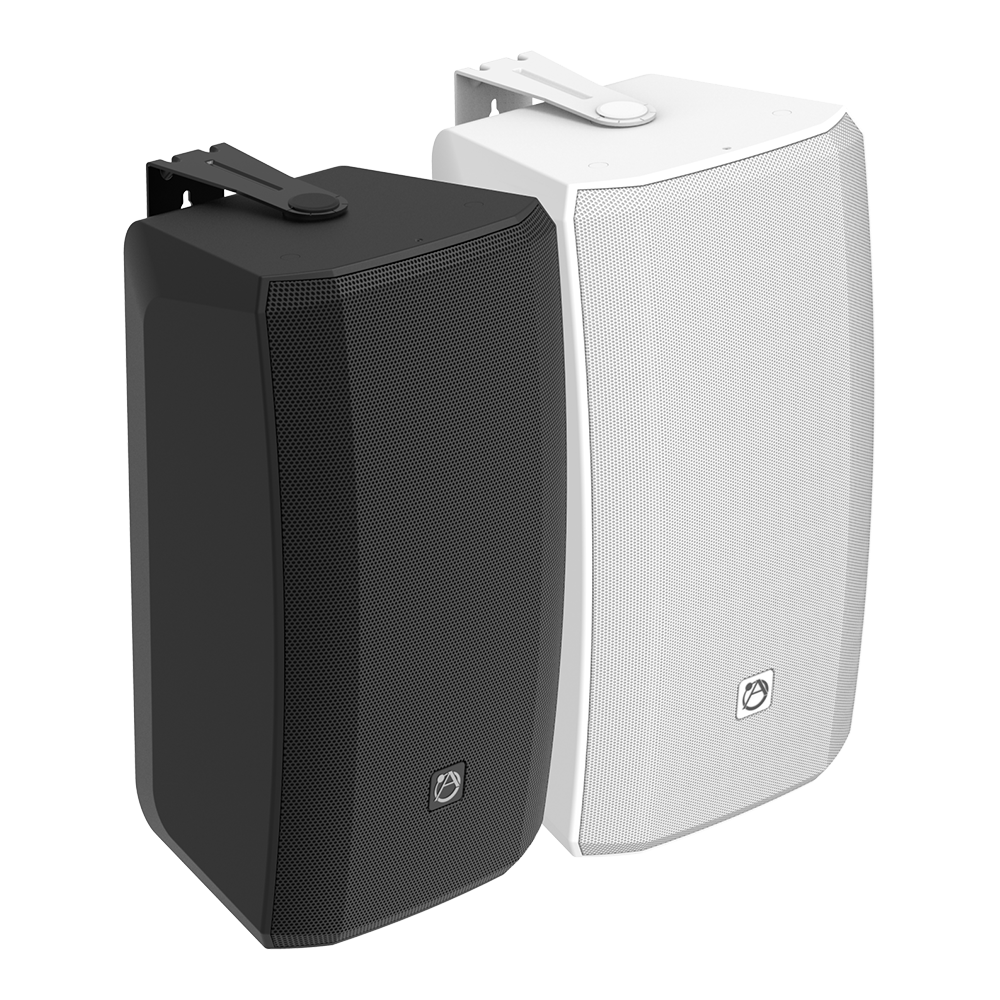

Available in textured black or white, the outstandingly durable and scuff resistant, high impact ABS enclosure with UV inhibiter is weather resistant (IP55), for consistent performance in adverse conditions, both indoors and out.

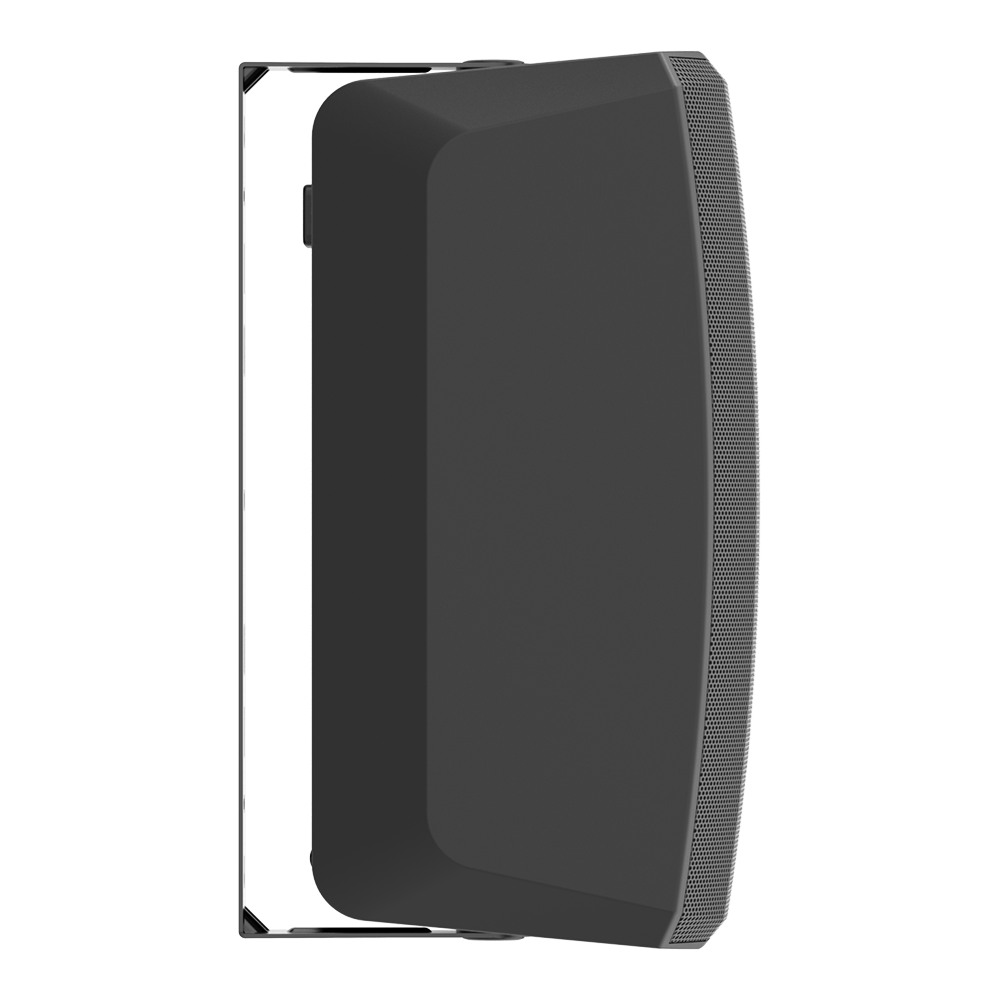

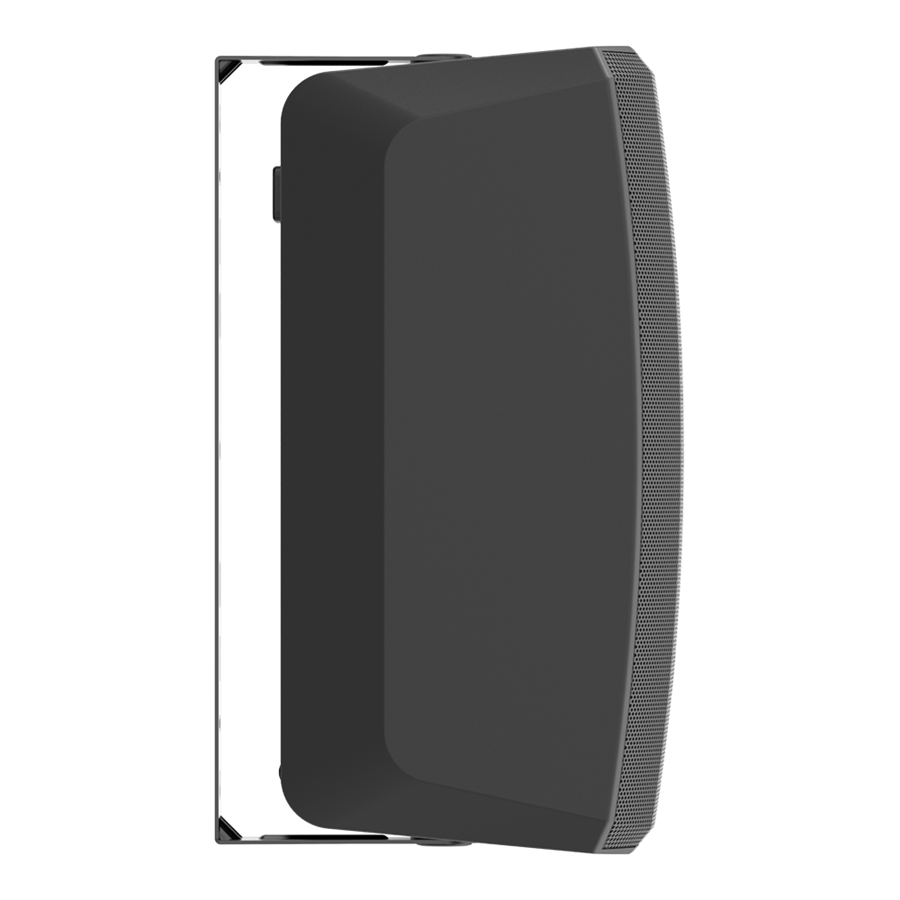

Safe and effective Installation of the AS-10T is made simple by way of the included slip free yoke mount.

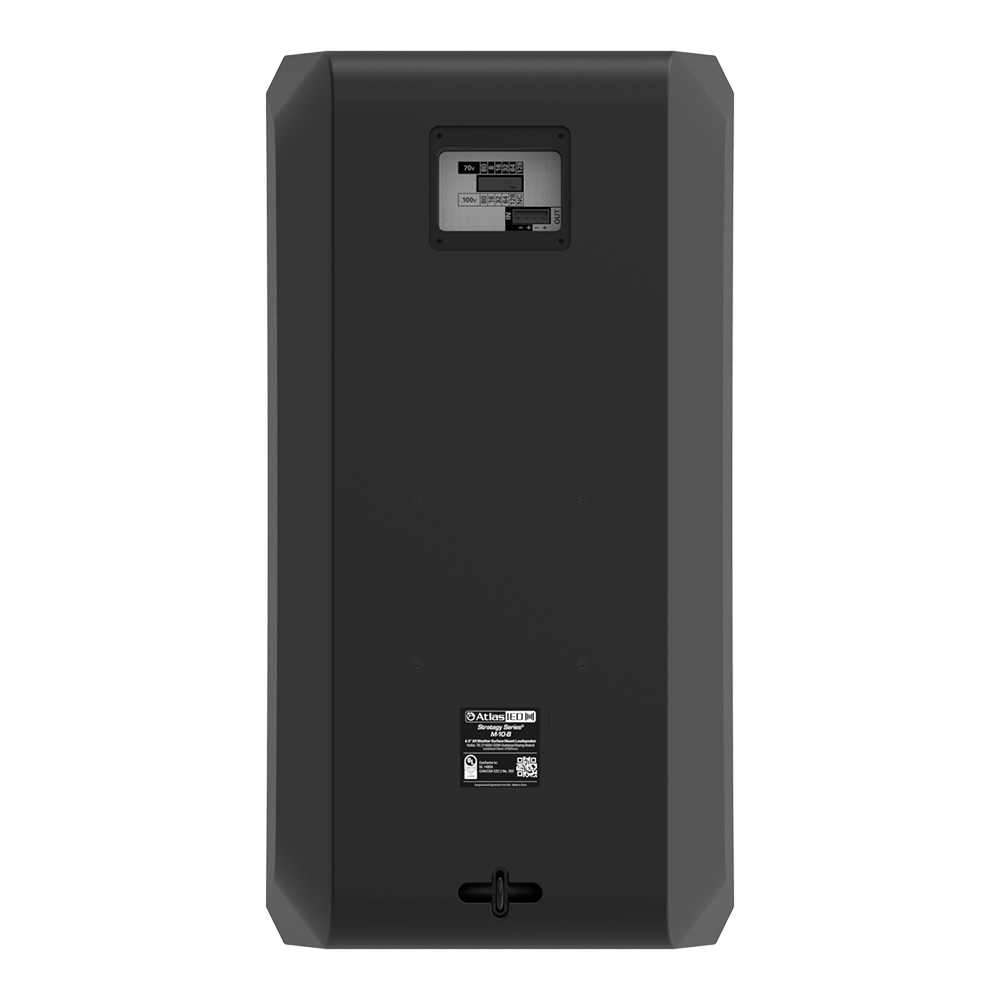

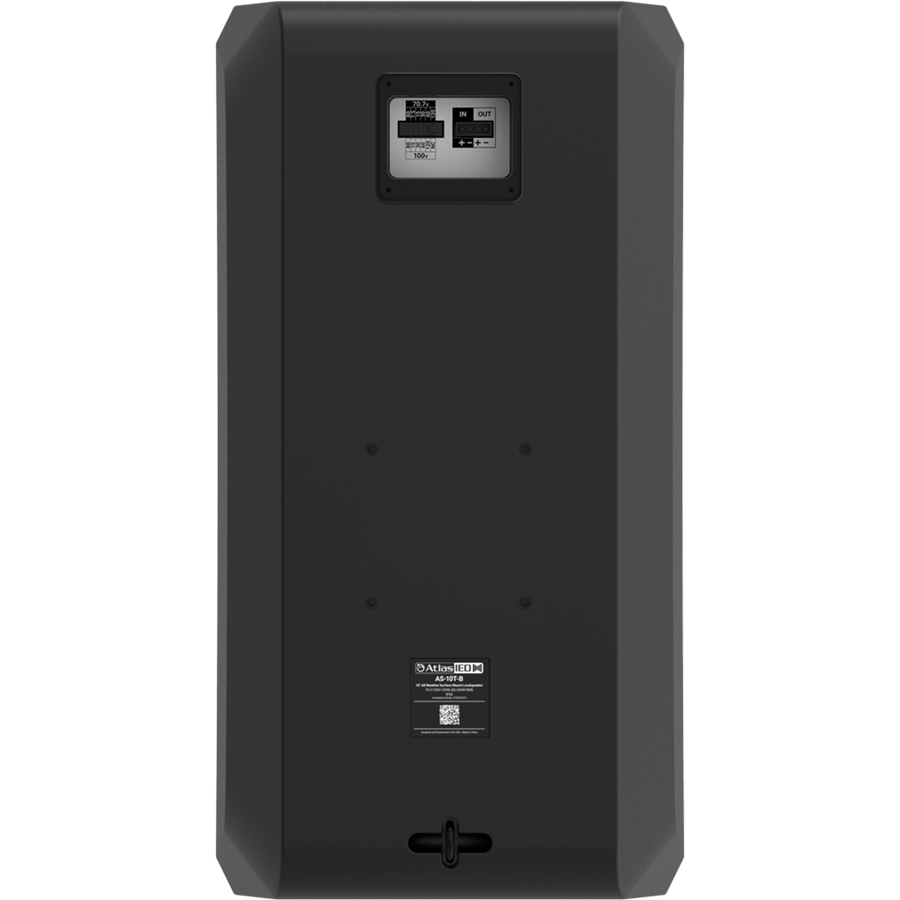

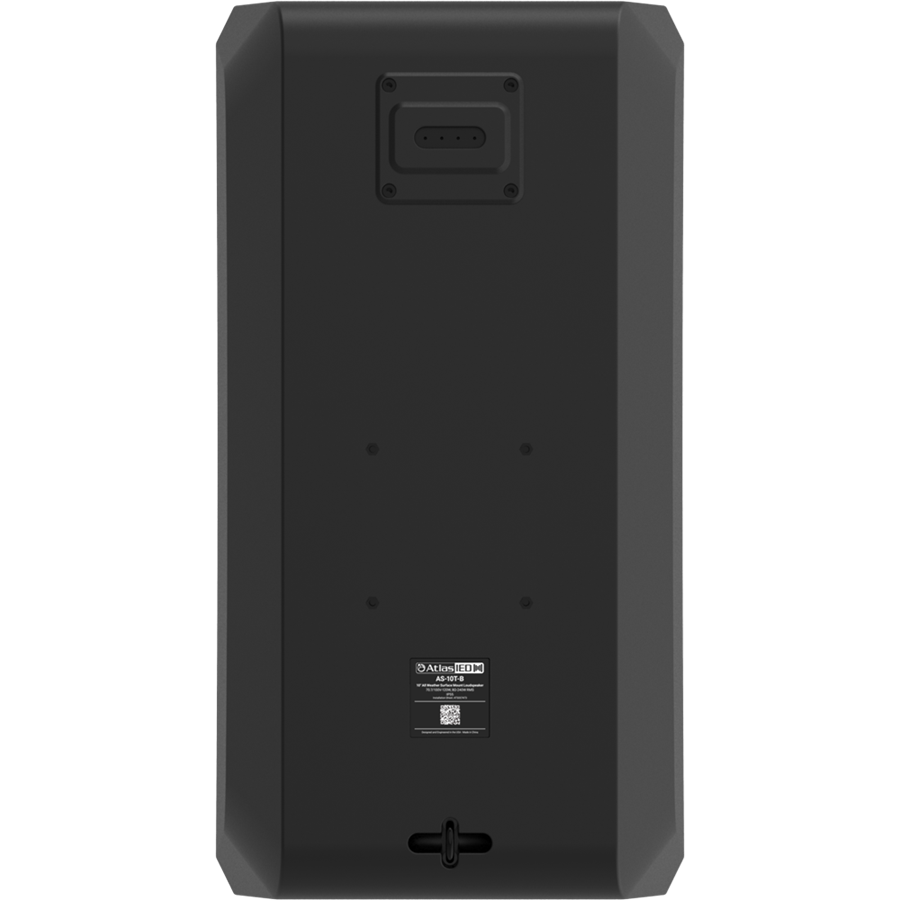

Equipped with a low insertion loss 120W transformer for 70V or 100V distributed applications, wattage tap selection and low impedance bypass is easily configurable via a rear mounted slide selector switch with security cover.
The AS-10T has been sonically matched with the wider range of AS Series models, this allows consistency in installations where there is a mix of products used.
For the most discerning designers and integrators, a complete suite of EASE™ (including compatibility with EASE Focus), CF2, 3D CAD, and BIM/Revit families are available for download.
Minimalistic and clean industrial design for sensitive architectural
Effective coverage for systems with space limitations
Extremely consistent horizontal off axis performance
Ultra-low insertion loss 120W transformer for dynamic performance in distributed systems
High impact ABS enclosure with UV inhibitor
IP55 & UL1480A rated
Slip-Free yoke mount supplied. Optional pan and tilt bracket.
Compatible with VESA™ mounts
Advanced tunings available via AtlasIED Atmosphere DSP platform
Type Two-Way, Full Range, Surface Mount Loudspeaker
Frequency Range (-10dB) 45Hz-20kHz
Frequency Response (+/- 3dB) 58Hz-18kHz
Recommended Amplifier Power 480W @ 8 Ohms
Nominal Impedance 8 Ohms (Min 8.15 Ohms)
RATED MAXIMUM SPL
With Max. Transformer Tap - Average 114dB
Transformer Taps- Via Slide Selector Switch 120W, 60W, 30W, 15W ( 7.5W 70V) & Low Z operation
Directivity Index (DB) 8.5
