15-inch Woofer + 2-inch voice coil HF Driver
Sound that makes performances and audiences truly come alive doesn’t come easy. But C Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

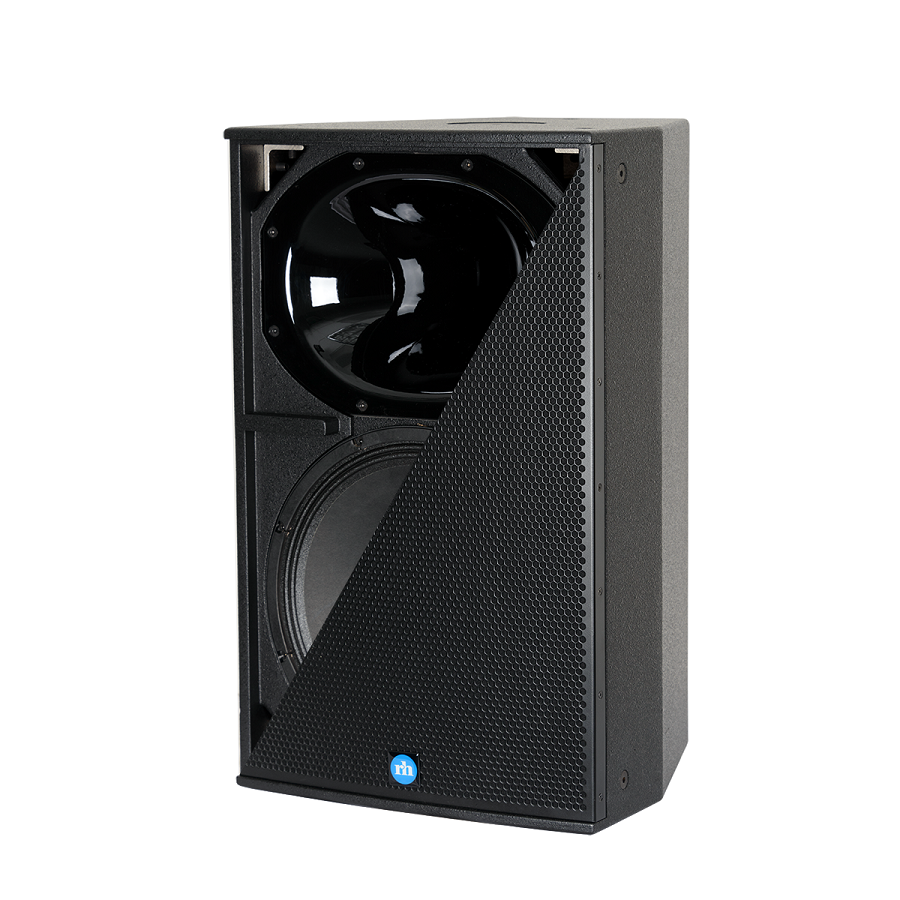

The C151 features a 15-inch heavy duty woofer and a 2-inch titanium HF driver.
CX151 Non-Powered Loudspeaker
For use with external amplification
• Compact Design
Outstanding, full-range ± 3 dB, 55 Hz to 20 kHz performance in a compact, space-saving design.
• Exclusive 60° x 40° Complex Conic Design
Provides constant beamwidth/directivity without the problems of conventional rectangular horns.
• 2-inch Extended Range Titanium HF Driver
Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
• Heavy-Duty 15-inch Woofer
Easily handles 700 Watts of program power.
• Built-in Crossover
Includes EQ and high frequency protection; in the CX151 eliminates need for a separate electronic crossover and bi-amplification.
• Virtually any application where size is a critical issue and outstanding sonic performance is required.
• Ideal compact main PA for music and speech or as part of a high output distributed system in larger venues.
• Houses of worship, schools, performing art centers, night clubs, stadiums and arenas.
• Ideal main PA for unobtrusive live music and speech reinforcement or as fill coverage in larger systems.
• Rental A/V, DJ systems, churches, schools, etc.
Sensitivity: CX151 98 dB (1W/1m)
Max SPL: CX151 129 dB Peak
CA151-RD 128 dB Peak
CA151-RD 60° x 40°, non-rotatable horn, (90° x 40° available for purchase)
Freq. Response: CX151
CA151-RD ± 3 dB, 55 Hz to 20 kHz
HF Driver: CX151
CA151-RD SSD1747-8, 60 W AES @ 8 ohms
LF Driver: CX151
CA151-RD SSL15-24, 350 W AES @ 8 ohms

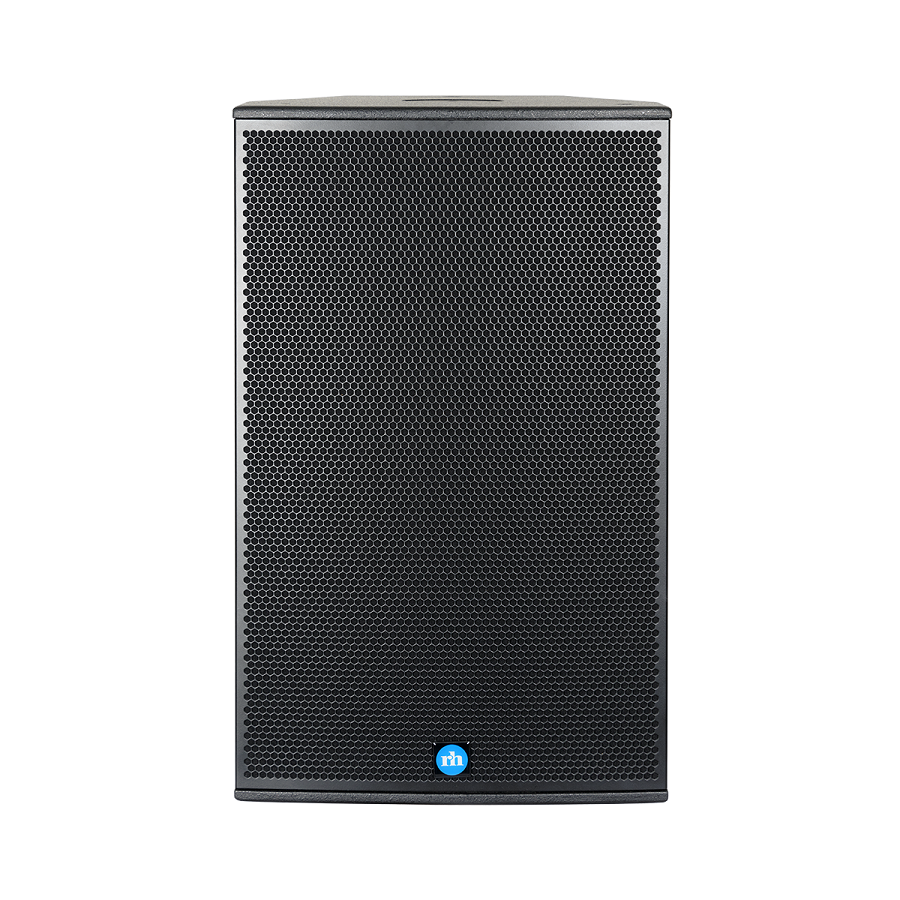

CA151-RD Poplar Ply, perforated metal grille
CA151-RD Black or White Paint
Power Rating: CX151 350 W AES @ 8 Ohms
700 W Pgm @ 8 Ohms
CA151-RD See SA-1250 Amplifier

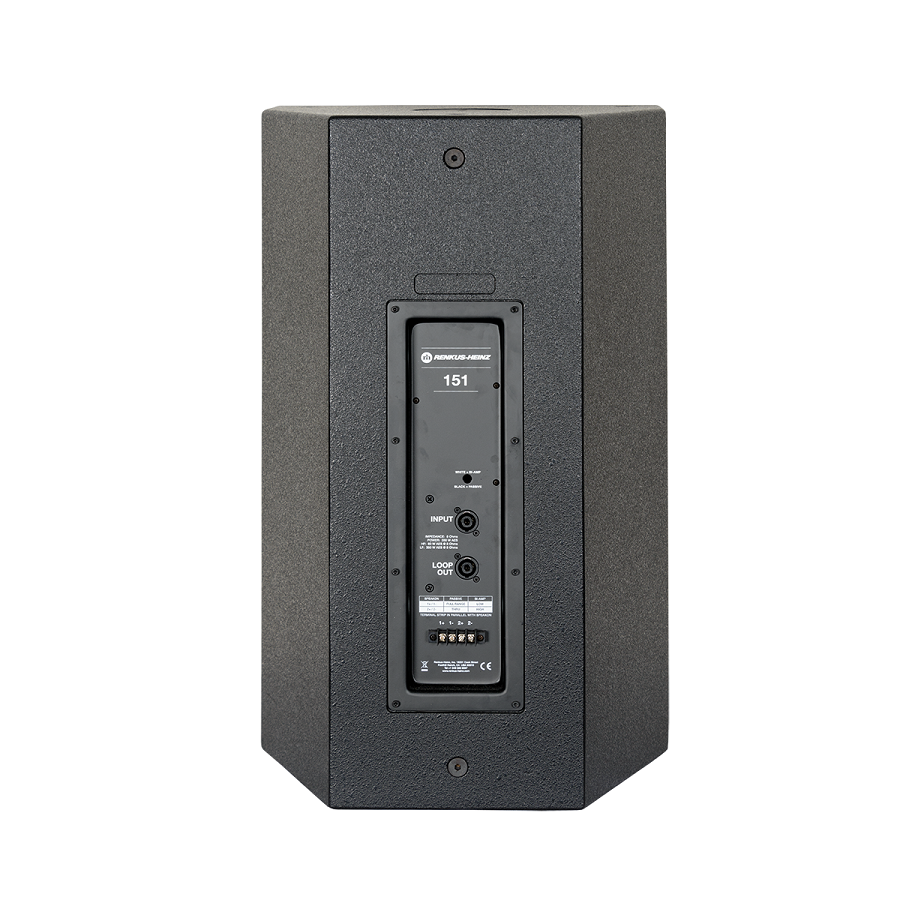

Connectors: CX151 Screw terminals & looping Neutrik 4-pin SpeakOn style connectors
CA151-RD See SA-1250 Amplifier
CA151-RD 12-point Universal Mounting Hardware
(Metric M10 threads)
M10 U-bracket attachment points
CA151-RD 28-1/2″ H x 17-1/2″ W x 17″ D
724 mm H x 445 mm W x 432 mm D
CA151-RD 52 lbs / 23.6 kg, Net
SA1250 Amplifier Specifications
Audio Connections: CA151-A 2 x XLR-3, In & Loop-out, Analog
CA151-RN 2 x XLR-3, In & Loop-out, Analog and AES
CA151-RD 2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Network Connections: CA151-RN 2 x RJ45, Looping Ethernet/RHAON
CA151-RD 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
Maximum Input Level: CA151-A +22 dBu, Analog
CA151-RD +22 dBu, Analog, 0 dBFS digital
User DSP: CA151-A
CA151-RD Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
CA151-RD RHAON II
CA151-RN 6.25 ms
CA151-RD 6.25 ms + Dante transport latency
Power Output: CA151-A
CA151-RD LF= 1000 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage: CA151-A
CA151-RD 100-240 volts, 50/60 Hz auto-switching
Power Consumption: CA151-A
CA151-RD Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
Power Connector: CA151-A
CA151-RD Neutrik powerCON TRUE-1
Temprature Limits: CA151-A
CA151-RD Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
