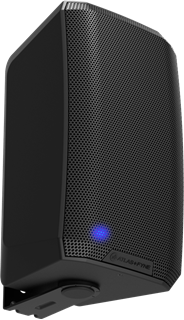

IsoFlare™ 6" Premium Aufbaulautsprecher wetterfest IP55 mit 2x 30W Dante PoE+/++ | 8 Ohm Out, schwarz;

DESCRIPTION
The Atlas+Fyne FS-6D is a wide bandwidth 6" surface mount loudspeaker designed for the ultimate in fidelity, coverage, and aesthetics.

For the first time, the combination of IsoFlare™ transducer technology, the flexibility of the Audinate Dante® digital audio transport platform, optimal power (POE++), and loudspeaker management is incorporated in a premium package.

A single CAT cable connects the FS-6D to the flexibility and convenience of networked audio, allowing designers, integrators, and installers access to advanced features like system configuration, supervision, and calibration tools.

Powered by PoE+ or POE++ and compatible with both Dante and AES67 IP audio streams, the IsoFlare™ FS-D range is flexible, scalable and powerful. A second amplifier output is incorporated to allow local connection to a passive Atlas+Fyne loudspeaker.

IsoFlare™ is the new benchmark in point source technology for prestigious commercial environments. Decades of experience from acoustic and mechanical engineers specializing in this technology have honed existing skills complemented with the very latest in design & engineering techniques to bring IsoFlare™ to the premium commercial space in an integrated package.

Unlike discreet and ‘coax’ offerings, the IsoFlare driver exhibits excellent harmonic alignment between HF and LF sources, delivering accurate and natural reproduction with superb tonal balance. Propagating a spherical wavefront, homogeneously aligned on all axes, the IsoFlare™ point source driver yields an even response throughout the listening area, while a constant time delay over the entire frequency spectrum provides exceptional off-axis performance.

Safe and effective installation is made simple by way of the included slip-free yoke mount, optional universal mount, or compatibility with third party VESA® mounts.

The FS-6D is designed for applications requiring a combination of premium sonic quality for music and speech reinforcement with exceptional reliability, in an architect/designer/installer friendly solution.

Features
Minimalistic industrial design for sensitive architectural constraints
Consistent voicing and measured performance across all IsoFlare™ Series products whether ceiling-, surface- or pendant-mount
IP55 rated, high impact ABS enclosure with UV inhibitor
Integrated DSP and Amplifiers, Power-over-Ethernet (PoE+ or PoE++)
AtlasIED Discover software-based configuration, control, and telemetry
Multiple configuration options
Visual and audible locator
Dante and AES67 compatible
Dante Domain Manager compatible
Full control and monitoring of individual and multi-zones
Secondary output for powering a passive Atlas+Fyne loudspeaker
Ferrofluid-cooled titanium HF driver with neodymium magnet system
Weather treated multi-fiber paper cone – stiffness combined with a controlled top end roll-off for an accurate midrange.
Slip-free yoke mount supplied. Optional pan and tilt bracket. Compatible with VESA® mounts.

Applications
Boardrooms & Corporate Offices
Airports, Convention Centers, Hotels
Casinos
Houses of Worship
Retail Outlets, Shopping Malls
Museums
Lounges/Bars
Sports Facilities
Health Clubs
Performing Arts Centers
Education Facilities
Cruise Ships
Courtrooms
Multizone Foreground Music & Paging Systems

SPECIFICATIONS
Type Active two-way, full-range surface mount loudspeaker
Frequency Range (-10dB) 57 Hz-20 kHz
Frequency Response (+/- 3dB) 72 Hz-19 kHz
Nominal Coverage Angle 100° Conical
Directivity Index (dB) 8.2
AMPLIFICATION
Type Two-Channel, Class D
Power Source - Supported PoE Standards PoE++ Type 4, PoE++ Type 3, PoE+ Type 2
Secondary Amplifier Output Power
PoE++ Type 4 46 W Burst (20 ms)
36 W RMS
PoE++ Type 3 37 W Burst (20 ms)
30 W RMS
PoE+ Type 2 16 W Burst (20 ms)
10 W RMS
Secondary Amplifier Output Supported Impedance 8 Ω
