Appliance inlet connector, 1/4" flat tab terminals

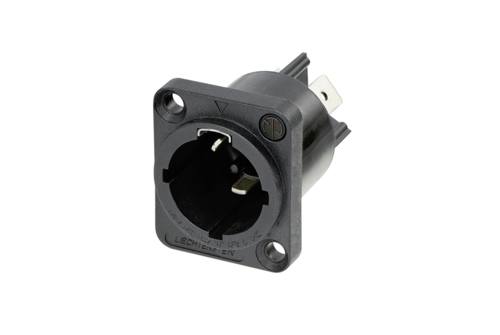

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features and Benefits
Heavy duty sealed power connector for harsh and demanding environment

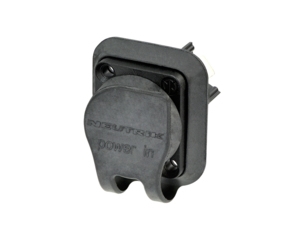

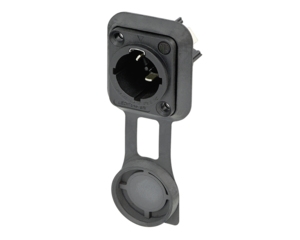

Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-MPX)
Uses high impact UV-resistant materials
True mains connector with breaking capacity (CBC)
Lockable 16 A single phase connector (USA: 20 A)
Easy and reliable twist lock system
Extremely robust and reliable
Unique Neutrik cable retention
ENEC certified according to IEC 60320
