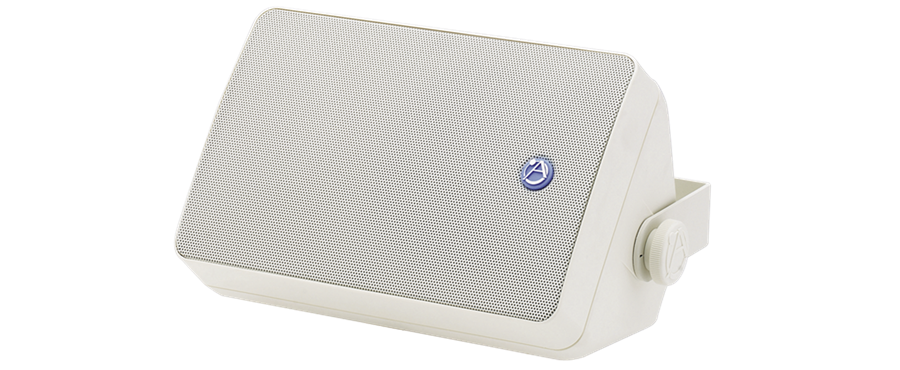

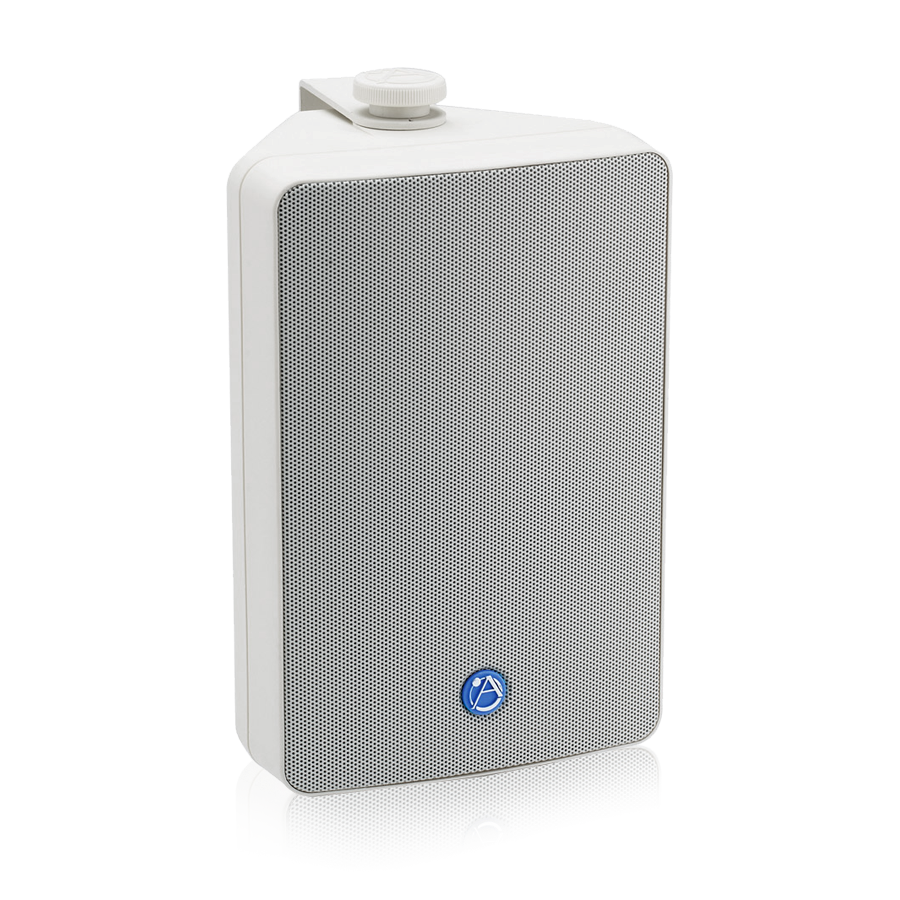

SM52TEN-WH

5.25" 2-Weg Aufbaulautsprecher EN54-24 wetterfest IP33C mit 30 W | 100 V / 100 W | 8 Ohm, weiss;

VPE: 2 Stück (MOQ)
EN54-24 zertifiziert - 2531-CPR-CSP11243
Leistung: 30/15/7.5/3.8 Watt | 100Volt (100 Watt | 8 Ohm)
Dimensionen: HxBxT 285x175x148mm
Abstrahlwinkel: 90°x90° | Schutzklasse: Wetterfest IP33C
inkl. Halterung (U-Bügel)
Farbe: Weiss, ähnlich RAL 9016 (auch als Standard Schwarz oder Option RAL/NCS Farbton erhältlich!)
Dieses Produkt hat eine Mindestmenge von 2
DESCRIPTION

Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled, titanium dome high frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the AtlasIED TRX Control WaveGuide™ high frequency director. This design provides smooth, even sound coverage (90o H x 90oV). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED PolyGuard™ protection circuit. The SM52TEN includes an internally mounted 60 Watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 6Ω operation.


FEATURES

1" Ferrofluid™ Cooled Dome Tweeter
100HR Salt Spray Test Per ASTM B117
All ¼"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
Atlas Sound POLYGUARD™ High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
Atlas Sound TRX WAVEGUIDE™- A Constant Directivity Style High Frequency Wave Guide System Provides Accurate, Even High Frequency Coverage
Available in Black or White
Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
Five-Year Warranty
Weather-Resistant Construction For Year-round Indoor Use, (Not EN54-24 certified for outdoor use), UV-resistant PC / ABS, Injection Molded, Weatherproof Enclosure, Powder Coated Aluminum Grilles and all Brass Hardware Inserts
EC UK Certificate of constancy of performance to EN54-24
UK UK Certificate of constancy of performance to EN54-24
OMNIMOUNT™ Compatible


SPECIFICATIONS

SPEAKER TYPE Surface Mount
POWER TAPS .94, 1.9, 3.7, 7.5, 15, 30 & 6Ω Bypass
SENSITIVITY 90dB
SENSITIVITY (EN54-24) 69dB
FREQUENCY RESPONSE 93Hz - 20kHz
HEIGHT 10 3/16" (25.87 cm)
WIDTH 6 7/8" (17.46 cm)
DEPTH 5 7/8" (14.92 cm)
SHIPPING WEIGHT 5.00 lbs (2.27 kgs)
DESCRIPTION

Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled, titanium dome high frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the AtlasIED TRX Control WaveGuide™ high frequency director. This design provides smooth, even sound coverage (90o H x 90oV). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED PolyGuard™ protection circuit. The SM52TEN includes an internally mounted 60 Watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 6Ω operation.


FEATURES

1" Ferrofluid™ Cooled Dome Tweeter
100HR Salt Spray Test Per ASTM B117
All ¼"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
Atlas Sound POLYGUARD™ High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
Atlas Sound TRX WAVEGUIDE™- A Constant Directivity Style High Frequency Wave Guide System Provides Accurate, Even High Frequency Coverage
Available in Black or White
Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
Five-Year Warranty
Weather-Resistant Construction For Year-round Indoor Use, (Not EN54-24 certified for outdoor use), UV-resistant PC / ABS, Injection Molded, Weatherproof Enclosure, Powder Coated Aluminum Grilles and all Brass Hardware Inserts
EC UK Certificate of constancy of performance to EN54-24
UK UK Certificate of constancy of performance to EN54-24
OMNIMOUNT™ Compatible


SPECIFICATIONS

SPEAKER TYPE Surface Mount
POWER TAPS .94, 1.9, 3.7, 7.5, 15, 30 & 6Ω Bypass
SENSITIVITY 90dB
SENSITIVITY (EN54-24) 69dB
FREQUENCY RESPONSE 93Hz - 20kHz
HEIGHT 10 3/16" (25.87 cm)
WIDTH 6 7/8" (17.46 cm)
DEPTH 5 7/8" (14.92 cm)
SHIPPING WEIGHT 5.00 lbs (2.27 kgs)
