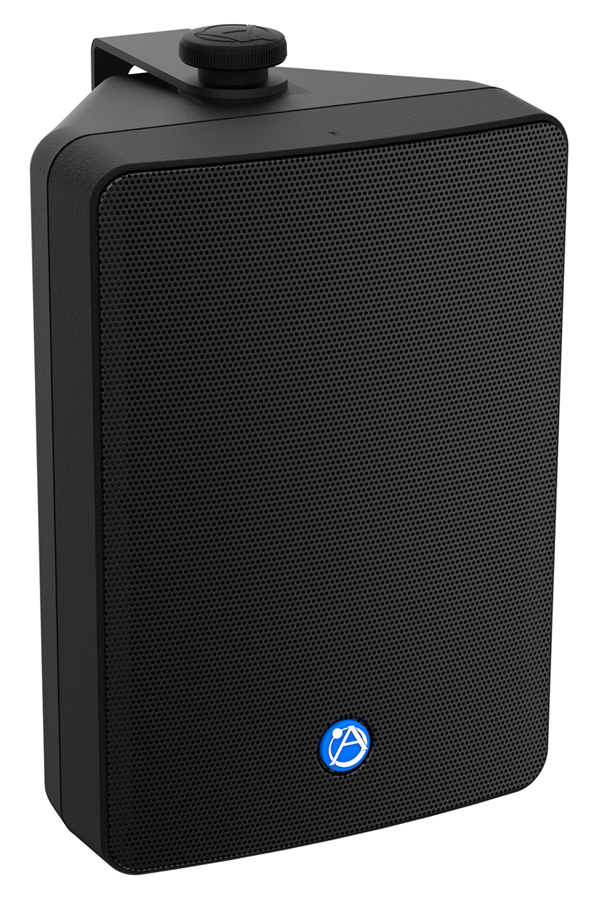

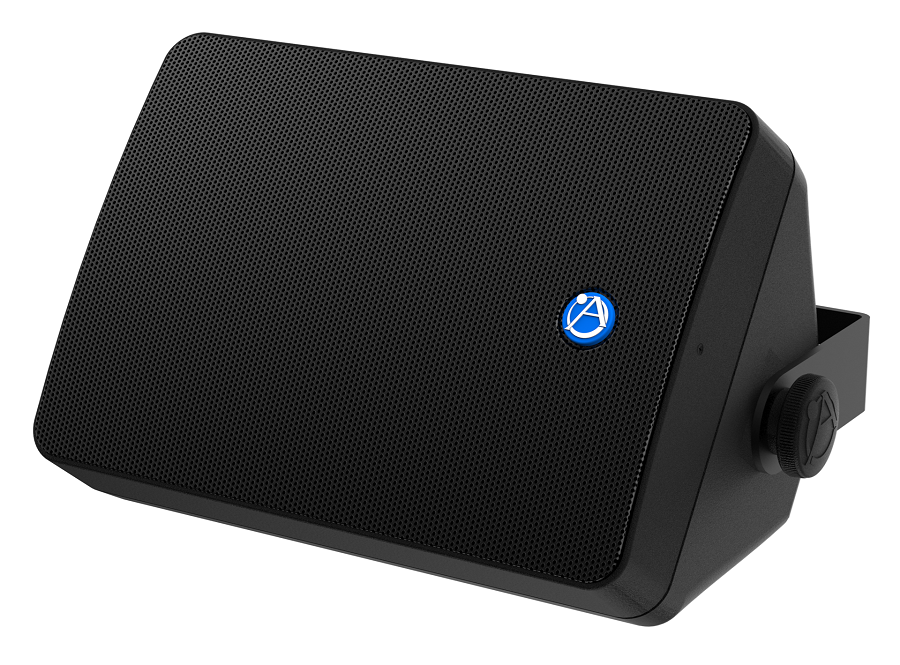

SM63TEN-B

6.25" 2-Weg Aufbaulautsprecher EN54-24 wetterfest IP33C mit 32 W | 100 V / 150 W | 8 Ohm, schwarz;

VPE: 2 Stück (MOQ)
EN54-24 zertifiziert - 2531-CPR-CSP11245
Leistung: 32/16/8 Watt | 100Volt (150 Watt | 8 Ohm)
Abstrahlwinkel: 120°x120° | Schutzklasse: Wetterfest IP33C
inkl. Halterung (U-Bügel)
Farbe: Schwarz, ähnlich RAL 9011 (auch als Standard Weiss oder RAL/NCS Farbton erhältlich!)
Dieses Produkt hat eine Mindestmenge von 2
DESCRIPTION

Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled, polymer reinforced linen composite dome high frequency device. This design provides smooth, even sound coverage (120° conical). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED PolyGuard™ protection circuit. The SM63TEN includes an internally mounted 32-Watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 8Ω operation.


FEATURES

1" Ferrofluid™ Cooled Dome Tweeter
100HR Salt Spray Test Per ASTM B117
All ¼"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
Atlas Sound POLYGUARD™ High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
Available in Black or White
Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
Five-Year Warranty
Weather-Resistant Construction For Year-round Indoor Use, (Not EN54-24 certified for outdoor use), UV-resistant PC / ABS, Injection Molded, Weatherproof Enclosure, Powder Coated Aluminum Grilles and all Brass Hardware Inserts
Highly Efficient 6.5" Polypropylene Woofer

EC UK Certificate of constancy of performance to EN54-24
UK UK Certificate of constancy of performance to EN54-24
OMNIMOUNT™ Compatible


SPECIFICATIONS

SPEAKER TYPE Surface Mount
POWER TAPS 4, 8, 16, 32 & 8Ω bypass
SENSITIVITY 88.5dB
SENSITIVITY (EN54-24) 72dB
FREQUENCY RESPONSE 104Hz - 20kHz
HEIGHT 10.27" (26.09 cm)
WIDTH 7.24" (18.39 cm)
DEPTH 6.68" (16.97 cm)
SHIPPING WEIGHT 6.55 lbs (2.97 kgs)
DESCRIPTION

Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled, polymer reinforced linen composite dome high frequency device. This design provides smooth, even sound coverage (120° conical). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED PolyGuard™ protection circuit. The SM63TEN includes an internally mounted 32-Watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 8Ω operation.


FEATURES

1" Ferrofluid™ Cooled Dome Tweeter
100HR Salt Spray Test Per ASTM B117
All ¼"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
Atlas Sound POLYGUARD™ High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
Available in Black or White
Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
Five-Year Warranty
Weather-Resistant Construction For Year-round Indoor Use, (Not EN54-24 certified for outdoor use), UV-resistant PC / ABS, Injection Molded, Weatherproof Enclosure, Powder Coated Aluminum Grilles and all Brass Hardware Inserts
Highly Efficient 6.5" Polypropylene Woofer

EC UK Certificate of constancy of performance to EN54-24
UK UK Certificate of constancy of performance to EN54-24
OMNIMOUNT™ Compatible


SPECIFICATIONS

SPEAKER TYPE Surface Mount
POWER TAPS 4, 8, 16, 32 & 8Ω bypass
SENSITIVITY 88.5dB
SENSITIVITY (EN54-24) 72dB
FREQUENCY RESPONSE 104Hz - 20kHz
HEIGHT 10.27" (26.09 cm)
WIDTH 7.24" (18.39 cm)
DEPTH 6.68" (16.97 cm)
SHIPPING WEIGHT 6.55 lbs (2.97 kgs)
