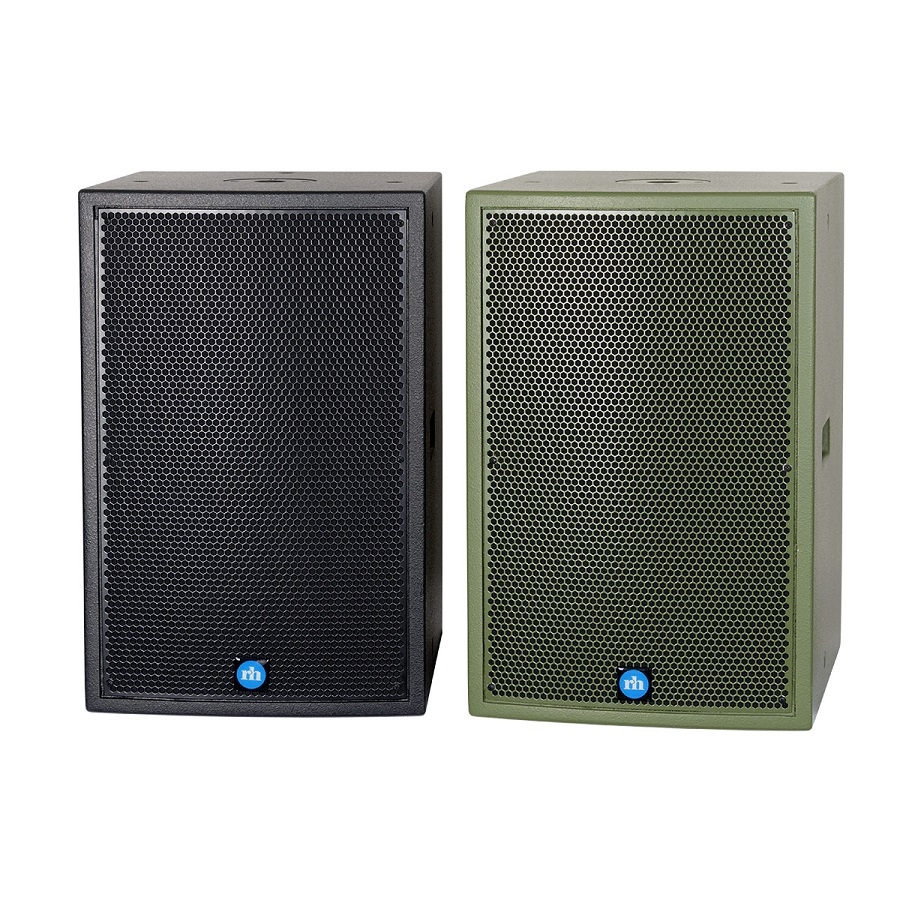

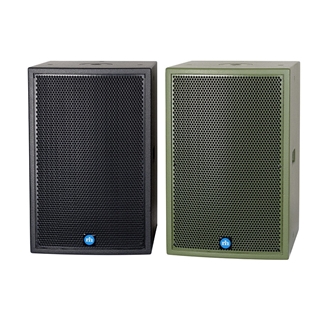

TX112S-WT

12" Subwoofer passive - White;

Masse: 587x381x438 (HxBxT)
Farbe: Weiss, RAL 9010 (auch als Standard Schwarz oder Option RAL Farbton, sowie WR Weather Resistant erhältlich!)
12 Inch High-Performance Subwoofer

T112S subwoofers were developed as companion pieces to full range T Series loudspeakers. They provide the high impact sub bass energy needed in many venues.


12-Inch High Performance Subwoofer
Sound that makes performances and audiences truly come alive doesn’t come easy. But T Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

TA112S Powered Loudspeakers
Equipped with SA1250 Series Amplification

TX112S Non-Powered Loudspeakers
For use with external amplification

Key Features

• Powerful 12-inch Subwoofers
Outstanding 40 Hz to 120 Hz, 133 dB peak SPL sub-bass performance.

• High Performance, High Power Woofers
With long-throw magnetic structures easily handle 500 Watts of program power.

• Built-In Lo-Pass Filter
May be bypassed to allow use of an external electronic crossover.



Applications

• Virtually any application where high-output, low frequency content is required

Permanent Installations

• High quality music/speech systems and surround systems for houses of worship, schools, performing art centers, night clubs, etc.

Portable Applications

• Live music reinforcement, DJ systems, houses of worship, schools, etc.

Specification

Technical Information
Sensitivity: TX112S 97 dB (1W/1m)
Max SPL: TX112S 127 dB, peak, half space
TA112S-A
TA112S-RN
TA112S-RD 124 dB peak, half space
Freq. Response: TX112S
TA112S-A
TA112S-RN
TA112S-RD 40 Hz to 120 Hz
LF Driver: TX112S
TA112S-A
TA112S-RN
TA112S-RD SSL12-23 woofer, 250 W AES @ 8 Ohms, 500 W Pgm
Power Handling: TX112S 250 W AES @ 8 Ohms
500 W Pgm @ 8 Ohms
TA112S-A
TA112S-RN
TA112S-RD See SA625 Amplifier

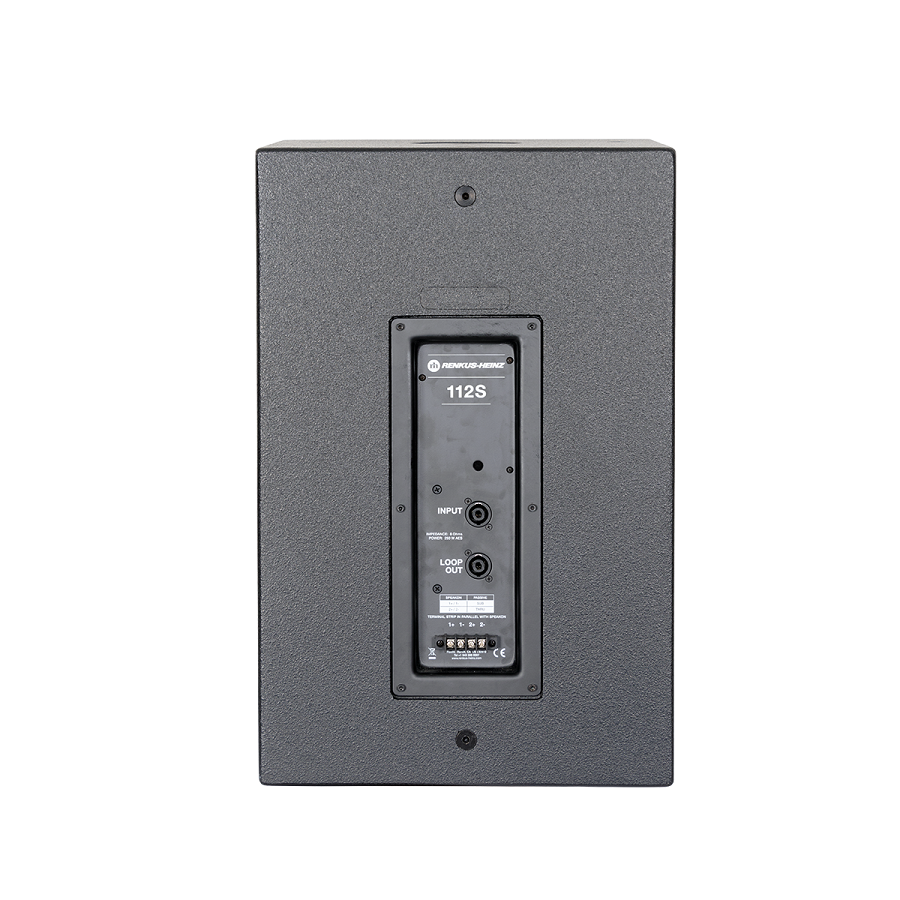

Connectors: TX112S Screw terminals & looping 4-pin Neutrik SpeakOn style connectors
TA112S-A
TA112S-RN
TA112S-RD See SA625 Amplifier
Enclosure: TX112S
TA112S-A
TA112S-RN
TA112S-RD 19 mm Lite Ply, perforated metal grille
Hardware: TX112S
TA112S-A
TA112S-RN
TA112S-RD 12 x M10 Points, 1 x 20 mm threaded pole socket
Finish: TX112S
TA112S-A
TA112S-RN
TA112S-RD Black or White Paint, standard.
Custom Color, Weather Resistant, optional.
Dimensions: TX112S
TA112S-A
TA112S-RN
TA112S-RD 15″ w x 23-1/8″ h x 17-1/4″ d
381 mm w x 587 mm h x 438 mm d
Weight: TX112S
TA112S-A
TA112S-RN
TA112S-RD 52 lbs / 23.6 kg, net
SA625 Amplifier Specifications
Audio Connections: TA112S-A 2 x XLR-3, In & Loop-out, Analog
TA112S-RN 2 x XLR-3, In & Loop-out, Analog & AES
TA112S-RD 2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Network Connections: TA112S-RN 2 x RJ45, Looping Ethernet/RHAON
TA112S-RD 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
: TA112S-A +22 dBu, Analog
TA112S-RN
TA112S-RD +22 dBu, Analog; 0 dBFS digital
User DSP: TA112S-RN
TA112S-RD Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Software: TA112S-RN
TA112S-RD RHAON II
Latency: TA112S-A
TA112S-RN 6.25 ms
TA112S-RD 6.25 ms + Dante transport latency
Power Output: TA112S-A
TA112S-RN
TA112S-RD LF= 500 watts, @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage: TA112S-A
TA112S-RN
TA112S-RD 100-240 volts, 50/60 Hz auto-switching
Power Consumption: TA112S-A
TA112S-RN
TA112S-RD Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
Power Connector: TA112S-A
TA112S-RN
TA112S-RD Neutrik powerCON TRUE-1
Temprature Limits: TA112S-A
TA112S-RN
TA112S-RD Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
