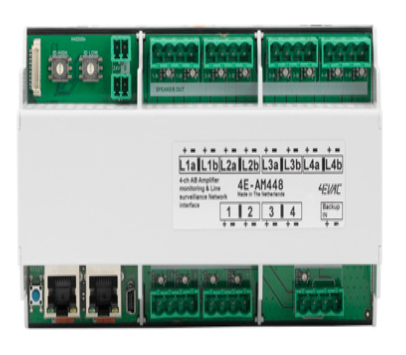

Amplifier & Loudspeakerline Monitoring module, 4x amplifier channels into 4x AB speakerline output EN54-16;
- 4 amplifier channel into 4 (A/B) speakerline surveillance module
- Directly connected to a single channel output line of an amplifier.
- High and low impedant loudspeaker detection. (With EOL)
- Max. of 3x AM488 sharing 1x L-Net connection for communication and power purpose.
(Without additional 24VDC) The AM488 can be remotely powered incase more than
3x AM488 units need to be linked to a single L-Net line.
- Each switched output zone requires an EOL-device for line-integrity detection
- RS485 datalink with
- Max. load: 500W per channel
- Redundant L-Net link, 2xRJ45
- Addressable: 0-255
