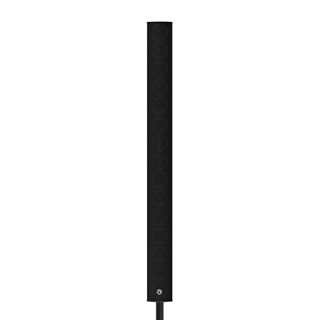

ALA15TAW-B

15x 3"/77mm & 4x 0.75" 2-Weg Designlinienstrahler EN54-24 mit 60 W | 100V / 250 W | 6 Ohm, IP33C, schwarz;

EN54-24 zertifiziert - 2531-CPR-CSP11248
Leistung: 60/30/15 Watt | 100Volt (250 Watt | 6 Ohm)
inkl. Dreh-/Neigwandhalterung
Höhe: 125.4cm | Schutzklasse: Wetterfest IP33C
Farbe: Schwarz (auch als Standard Weiss oder RAL/NCS Farbton erhältlich!)
DESCRIPTION

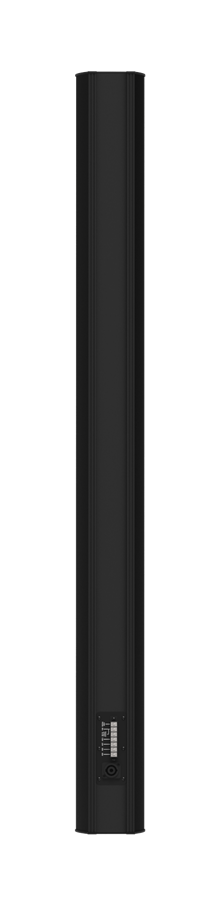

The EN54-24 certified ALA15TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA15TAW’s transducer configuration combines fifteen tight packed 3" (76mm)full range drivers and four 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in portable applications coupled with a portable A-Line subwoofer system.

Note: Pole and pole mount bracket sold separately.

FEATURES

45° Vertical Coverage
135° Horizontal Coverage
Fifteen (15) Proprietary 3" (76mm) Full Range Drivers
Four (4) High Frequency Tweeters
Barrier Strip and NL-4 Terminals
Lightweight Aluminum Housing
Wall Mount Bracket Included

SPECIFICATIONS

6Ω RMS Power 600 Watts
70.7V Power Taps 60W (81 Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6Ω)
100V Power Taps 60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6Ω)
Dispersion 135° H x 40° V
Sensitivity 96dB (1W/1m)
Sensitivity (EN54-24) 81dB (1W/4m)
Frequency Response 160Hz - 20kHz (+/-5dB)
Height 49.37" (1254mm)
Depth 5.43 (137.9mm)
Width 4.61" (117mm)
