ALA5TAW-B

5x 3"/77mm & 2x 0.75" 2-Weg Designlinienstrahler EN54-24 mit 60 W | 100V / 125 W | 6 Ohm, IP33C, schwarz;

EN54-24 zertifiziert - 2531-CPR-CSP11244
Leistung: 60/30/15 Watt | 100Volt (125 Watt | 6 Ohm)
inkl. Dreh-/Neigwandhalterung
Höhe: 42.2cm | Schutzklasse: Wetterfest IP33C
Farbe: Schwarz (auch als Standard Weiss oder RAL/NCS Farbton erhältlich!)
DESCRIPTION

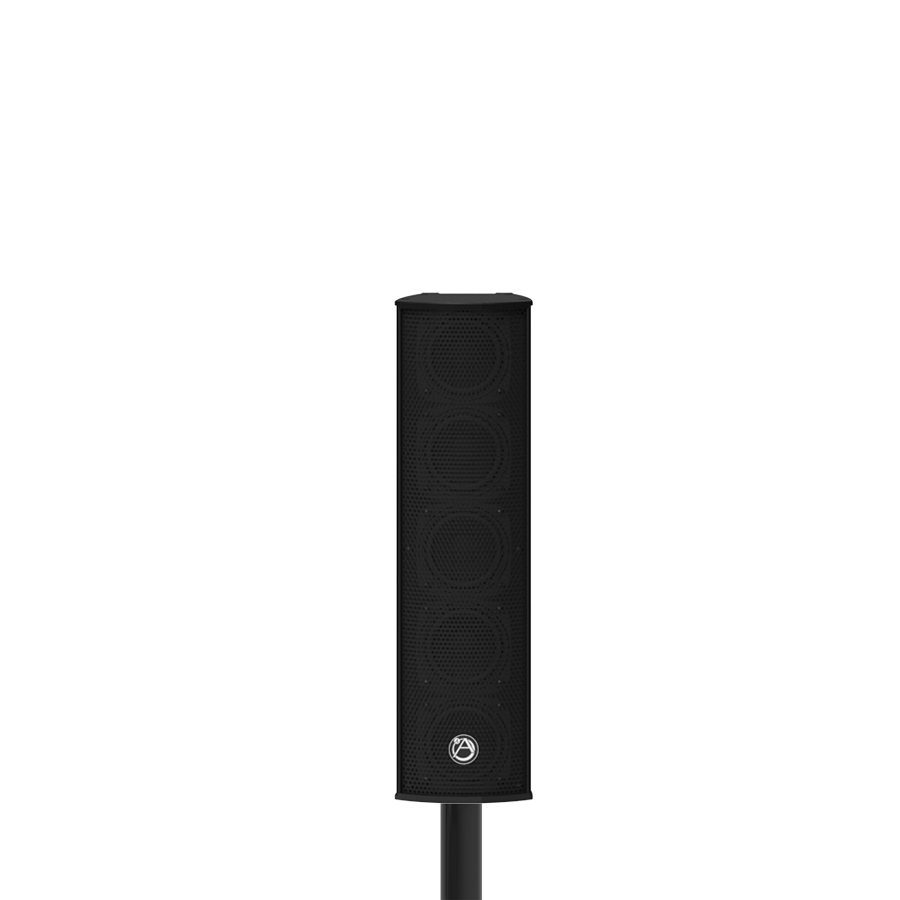

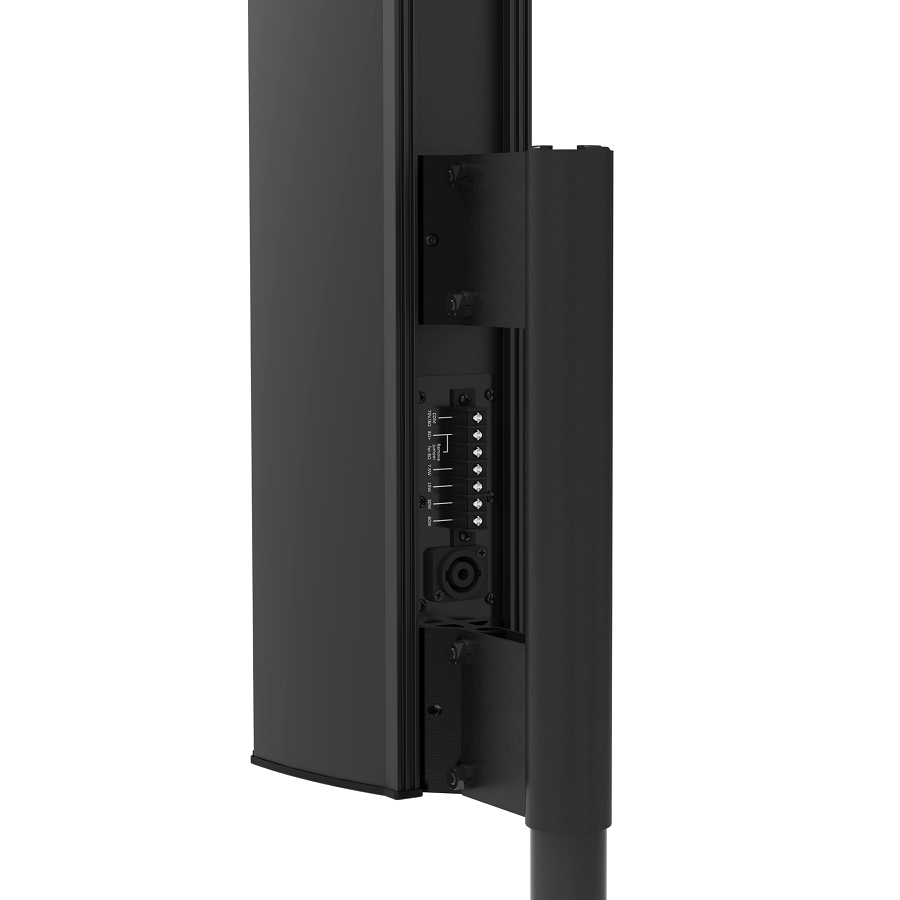

The EN54-24 certified ultra-compact ALA5TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5TAW’s transducer configuration combines five tight packed 3" (76mm) full range drivers and two 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in applications coupled with a portable A-Line subwoofer system.

Note: Pole and pole mount bracket sold separately.



FEATURES

45° Vertical Coverage
135° Horizontal Coverage
Two (2) High Frequency Tweeters
Five (5) Proprietary 3" (76mm) Full Range Drivers

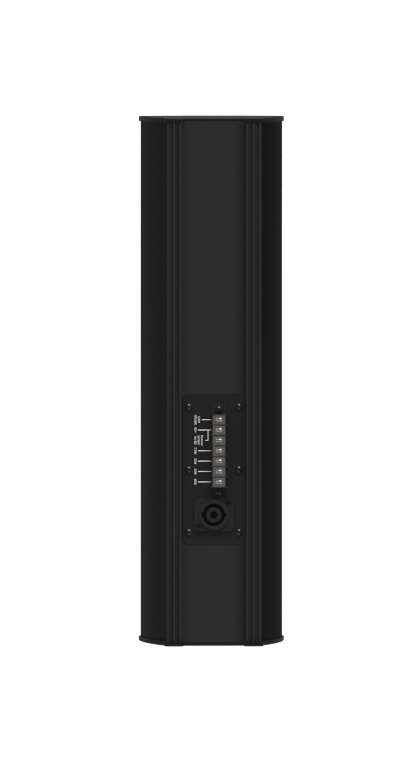

Barrier Strip and NL-4 Terminals
Lightweight Aluminum Housing
Wall Mount Bracket Included

SPECIFICATIONS
6Ω RMS Power 375 Watts
70.7V Power Taps 60W (81 Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6Ω)
100V Power Taps 60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6Ω)
Dispersion 135° H x 45° V
Sensitivity 92dB (1W/1m)
Sensitivity (EN54-24) 78dB (1W/4m)
Frequency Response 137Hz - 20kHz (+/-5dB)
Height 16.61" (422mm)
Depth 5.43" (137.9mm)
Width 4.61" (117mm)
DESCRIPTION

The EN54-24 certified ultra-compact ALA5TAW column line array loudspeaker delivers maximum performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA5TAW’s transducer configuration combines five tight packed 3" (76mm) full range drivers and two 22mm high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt. An optional pole mount bracket enables the array to be used in applications coupled with a portable A-Line subwoofer system.

Note: Pole and pole mount bracket sold separately.



FEATURES

45° Vertical Coverage
135° Horizontal Coverage
Two (2) High Frequency Tweeters
Five (5) Proprietary 3" (76mm) Full Range Drivers
Barrier Strip and NL-4 Terminals
Lightweight Aluminum Housing
Wall Mount Bracket Included

SPECIFICATIONS
6Ω RMS Power 375 Watts
70.7V Power Taps 60W (81 Ohm), 30W (163 Ohm), 15W (326 Ohm), 7.5W (653 Ohm) and Low Impedance (6Ω)
100V Power Taps 60W (163 Ohm) RNP, 30W (326 Ohm), 15W (653 Ohm) and Low Impedance (6Ω)
Dispersion 135° H x 45° V
Sensitivity 92dB (1W/1m)
Sensitivity (EN54-24) 78dB (1W/4m)
Frequency Response 137Hz - 20kHz (+/-5dB)
Height 16.61" (422mm)
Depth 5.43" (137.9mm)
Width 4.61" (117mm)
