Dual 8" LF + Six 19 mm HF Compact, High-output Steerable Array Module
Ultimate Flexibility in High-output Steerable Arrays

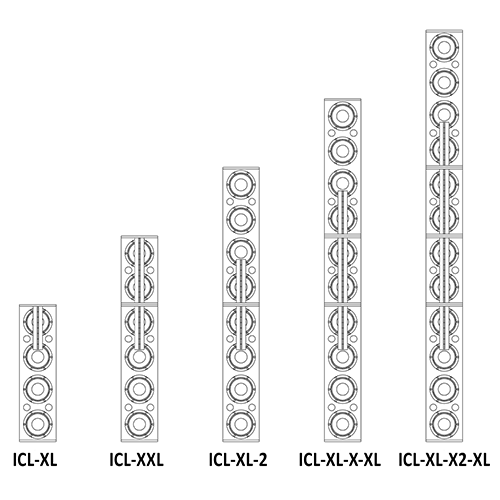

The IC-Live X series brings a new level of flexibility for integrators, contractors, and production/rental houses alike to provide the best solution for any application. The IC-Live X series is a complete system, designed from the ground up, consisting of two freely combinable, steerable-array modules, the ICL-X and ICL-XL, and two matching subwoofers, the ICL-XS and the ICL-X-118S.
New for the IC-Live X Series is Renkus-Heinz's exclusive Acoustic Source Multiplier (ASM) waveguide. The ASM allows the HF section to be coaxially mounted in front of the LF section. The coaxial driver arrangement delivers a consistent and symmetrical array of bothhigh frequencies and low frequencies along the entire length of the array, allowing the freedom to choose any acoustic center available.
In addition, the ASM reduces inter-driver spacing to it's absolute minimum, insuring gradient-lobe free performance to very high frequencies.

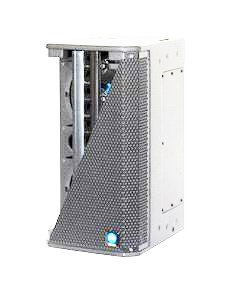

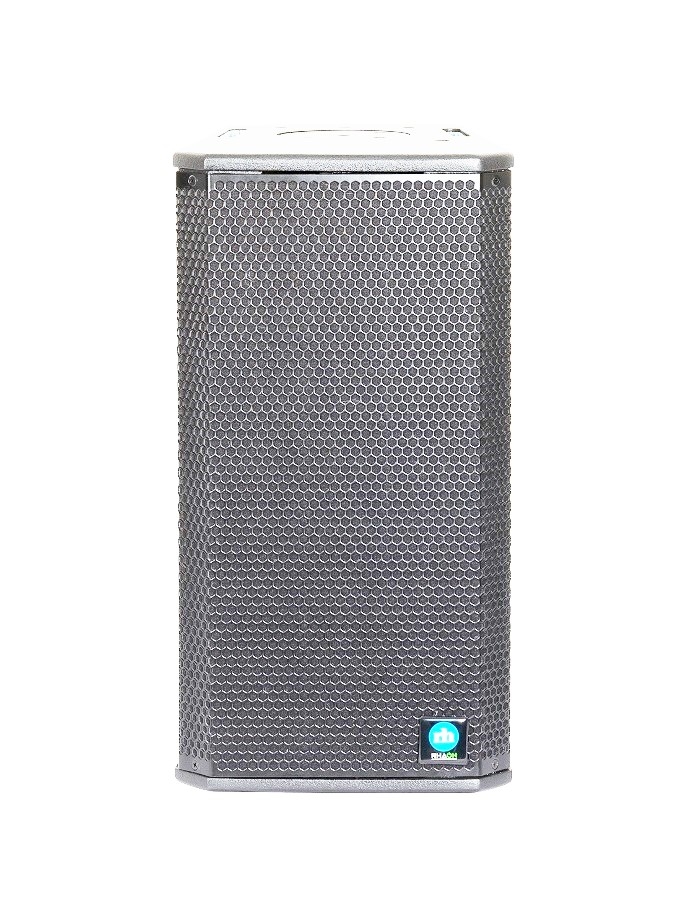

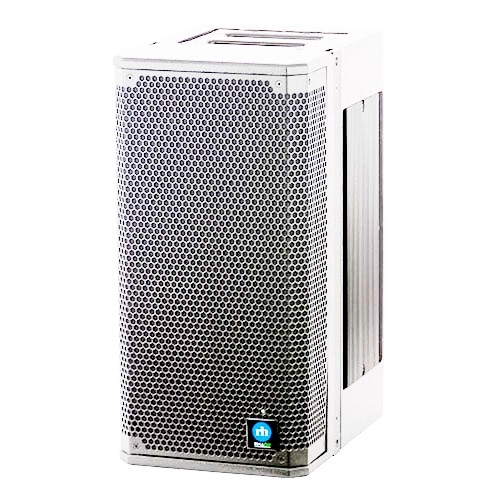

The ICL-X steerable array module comprises six, 19 mm compression drivers on an ASM Waveguide coaxially mounted in front of two 8" woofers. The built-in amplifier has eight amplifier channels each with its own dedicated DSP channel.
The ICL-X by itself is fully steerable down to 1500 Hz, and its dual woofer arrangement maintains significant pattern control down to lower frequencies. The ICL-X is a highly versatile loudspeaker and is intended to be used as a high output digitally steerable line array module in array combinations with the ICL-X and ICL-XS up to 12 boxes tall. This provides the system designer with the horsepower, steerability and directivity to deliver consistent coverage and clarity for even the biggest shows in the most difficult spaces.

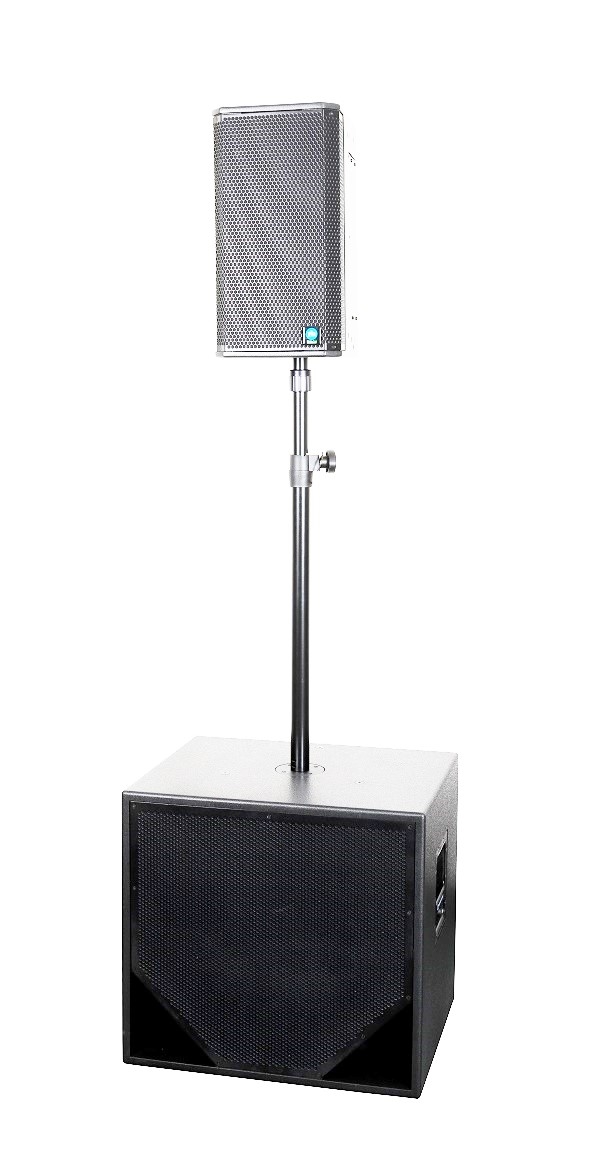

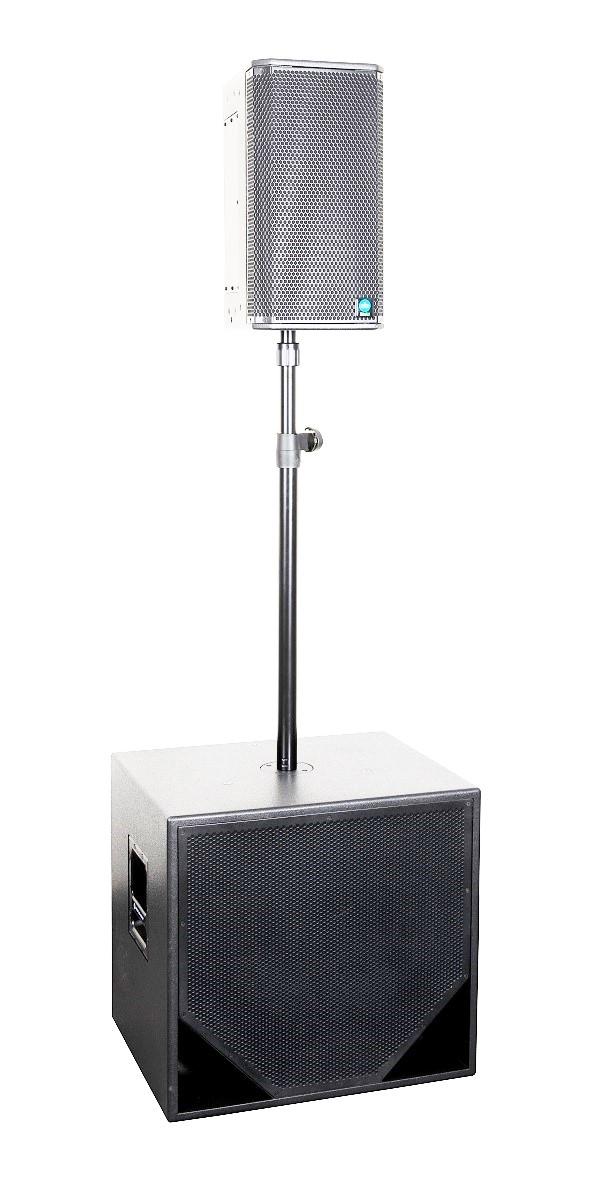

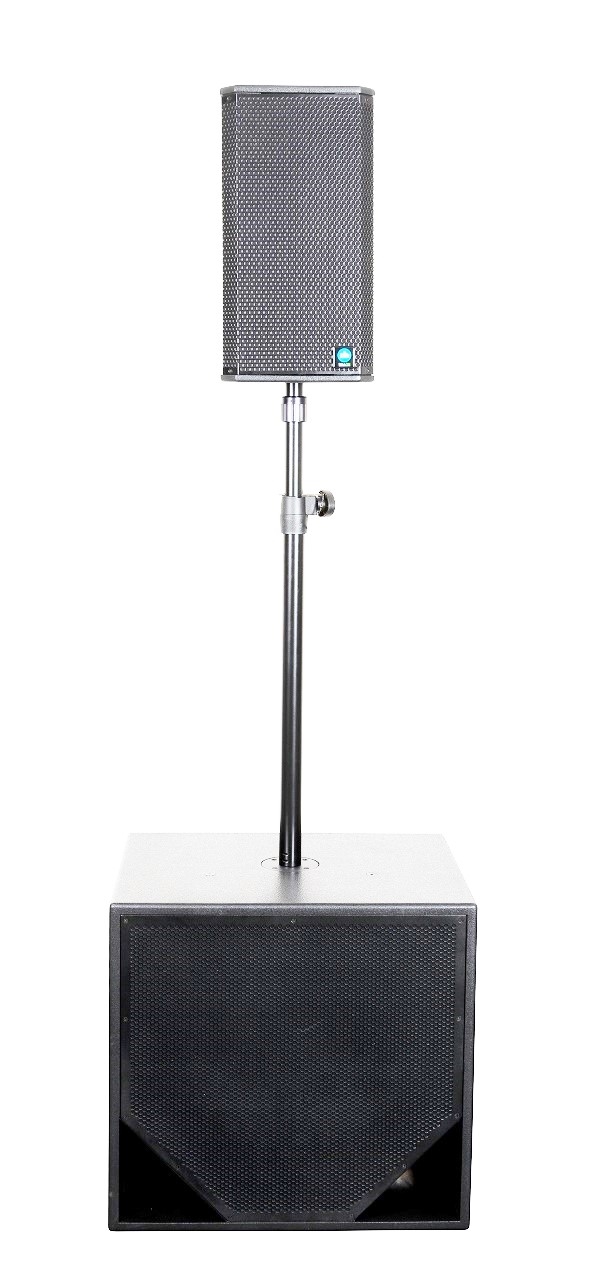

On it's own, the ICL-X can be used standalone, as main speakers for smaller rooms; portable, speaker-on-a-stick applications; center channel, or any sort of fill applications.
