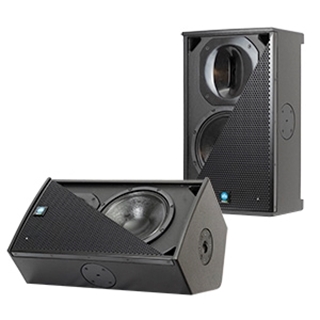

The P2-10 offers the sonic and performance advantages of a Complex Conic horn in a multi-angle cabinet that maximizes the utility of the loudspeaker. The rotatable Complex Conic horn insures that, whatever the cabinet orientation, the smooth consistent directivity matches the needs of the user. And the horn is ideally sized for consistent directivity through the low-high crossover as well. Only Renkus-Heinz can combine this level of performance, fidelity and power in such a compact, easy to install or transport loudspeaker.
Frequency Response: P2-10-RN
P2-10-RD 80 Hz. to 20 kHz. (-3 dB)
60 Hz to 20kHz (-10 dB)
P2-10-RD 1.4 volt for rated output, analog
Maximum Peak SPL: P2-10-RN
P2-10-RD 124 dB-SPL (Peak, whole space)
P2-10-RD 90 h x 60 v (Optional 120 h x 60 v)
Crossover Frequency: P2-10-RN
P2-10-RD 1.8 kHz, active electronic
P2-10-RD 3/4 in./19 mm Lite Ply plywood
P2-10-RD 16 GA powder coated, plated steel
P2-10-RD Black (RAL9010) or White (RAL9011) paint, standard. Custom colors optional.
P2-10-RD 35 mm tripod socket, Optional 10 mm U-Bracket Points. UBRKT/P210
P2-10-RD 40 lbs/18.2 kg
P2-10-RD 12-3/4″ w x 22-3/8″ h x 12-3/8″ d
324 mm w x 567 mm h x 324 mm d
SA650 Amplifier Specifications
Audio Connections: P2-10-RN 2 x XLR-3, In & Loop-out, Analog and AES
P2-10-RD 2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Maximum Input Level: P2-10-RN
P2-10-RD +22 dBu, Analog, 0 dBFS digital
Network Connections: P2-10-RN 2 x RJ45, Looping Ethernet/RHAON
P2-10-RD 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
User DSP: P2-10-RN
P2-10-RD Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
P2-10-RD RHAON II
Latency: P2-10-RN 6.25 ms
P2-10-RD 6.25 ms + Dante transport latency
Power Output: P2-10-RN
P2-10-RD LF= 500 watts, @ 8 ohms / HF = 250 watts @ 4 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage: P2-10-RN
P2-10-RD 100-240 volts, 50/60 Hz auto-switching
Power Consumption: P2-10-RN
P2-10-RD Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
Power Connector: P2-10-RN
P2-10-RD Neutrik powerCON TRUE-1
Temprature Limits: P2-10-RN
P2-10-RD Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
