PM8GD-B

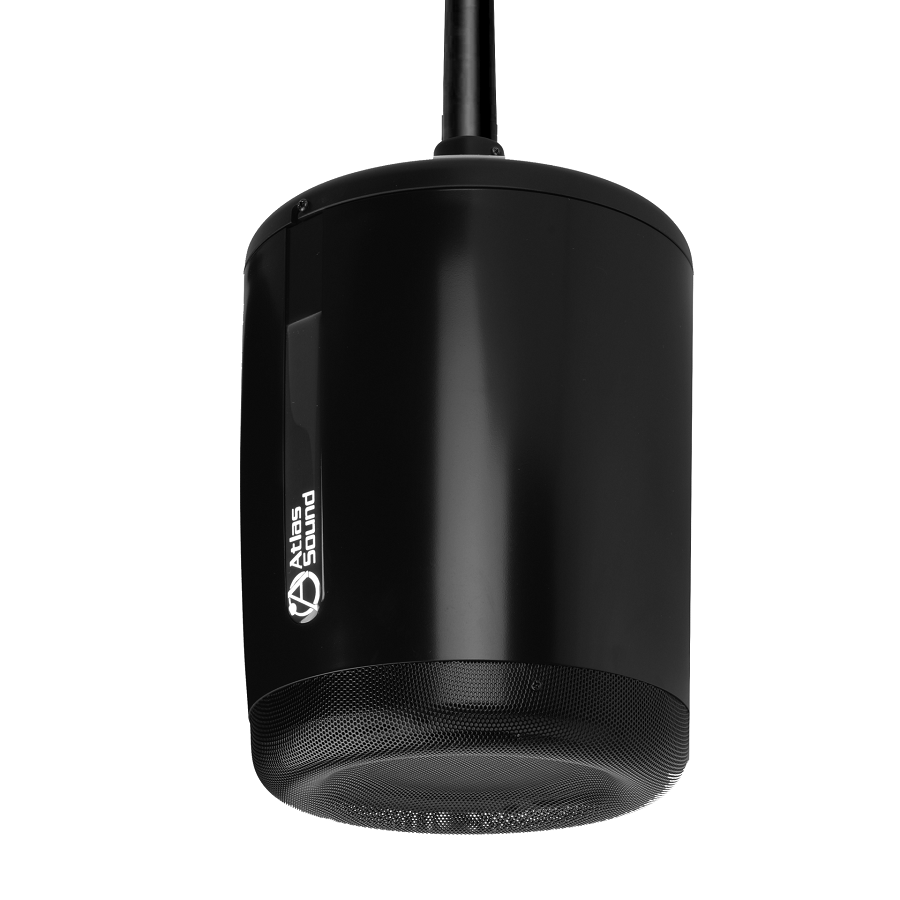

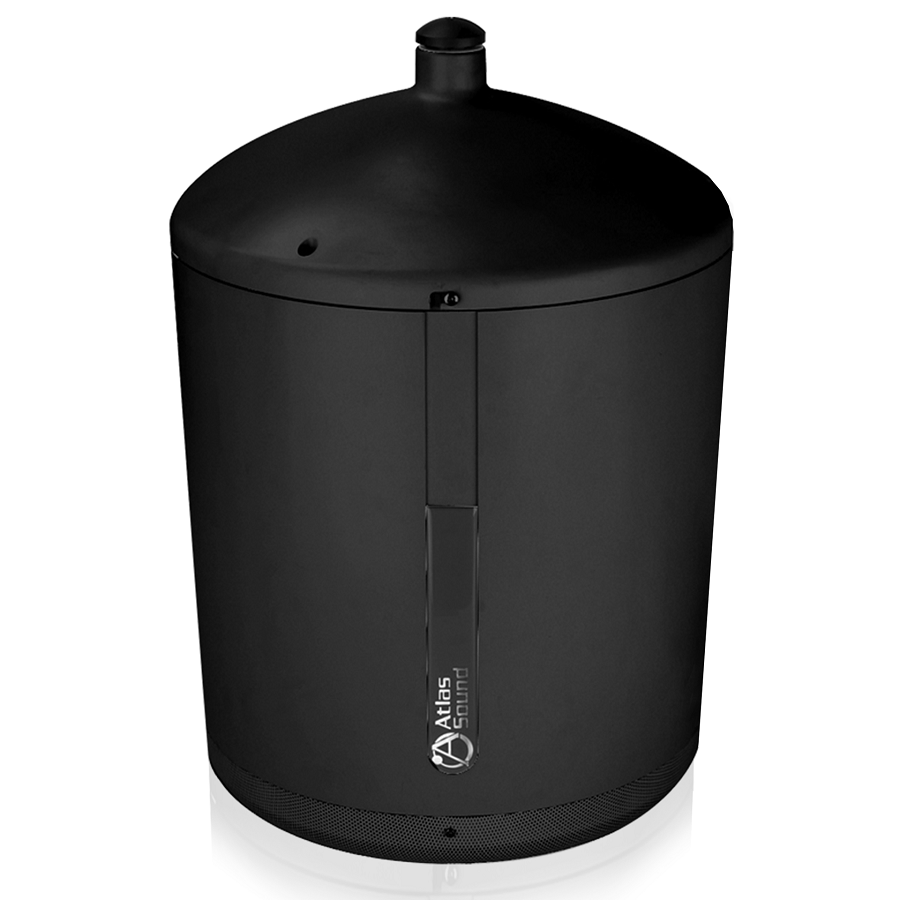

8" Coax Pendellautsprecher 8 W | 100 V / 8 Ohm, schwarz;

Schalldruck: 96dB
Abstrahlwinkel: 120°

DESCRIPTION
Model PM8GD-B uses the popular AtlasIED GD series coaxial driver to provide familiar response and high efficiency while retaining economy when high density speaker counts are required in page only applications.
FEATURES

70.7V Taps @ 1, 2, 4, 8 Watts and 8Ω Direct Input via Concealed Terminal Block
8" GD87 Driver Provides 120 Degree (60 Degree Off-Axis) Coverage in the 2kHz Octave Band
3 Meters of 2mm Cable & Mounting Hardware Included
Compatible with Standard 3/4" Ceiling Fan Hardware
Extreme High Efficiency (96dB 1W/1m) Allows for Lower Tap Settings and More Loudspeakers per Amp Channel in Many Installations

SPECIFICATIONS
Speaker Type Coaxial (Treated Paper)
Sensitivity 96dB Average
Frequency Response 55Hz - 15kHz
Impedance 1, 2, 4, 8 Watts and 8Ω
Dispersion 105° (2kHz Octave Band, -6dB Points)
Diameter 12 1/4" (31.115 cm)
