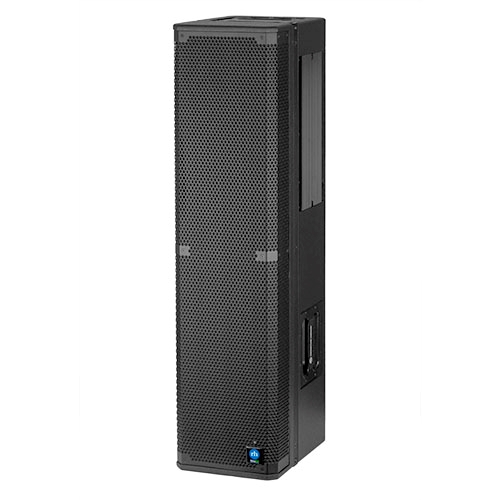

Iconyx Live X 4x 8" Digitally Steerable Column Subwoofer with Dante (redundant) - Black;

Discreet, High-Impact Sub-Bass for IC Live X
With the addition of the ICLX-48S, IC Live X expands on its class-leading flexibility with a new high-performance subwoofer module in a brand-new column form factor.


Hear More, See Less.

With a sleek column form factor and powerful sub-bass performance, the ICLX-48S delivers low-frequency support hidden in plain sight. Designed to perfectly match the form factor of existing IC Live X array modules, the ICLX-48S can be flown or wall-mounted with ICLX arrays in a single, unified column—enabling integrators to deliver high-performance, full-range sound systems in an ultra-compact package. The ICLX-48S integrates with all existing hardware for IC Live X Series loudspeakers, simplifying installations and field deployments.


Advanced Engineering, Powerful Performance

Equipped with state-of-the-art transducers, a proprietary amplifier, and 2000 watts of power, the ICLX-48S delivers impressive low-frequency extension and musicality. The cabinet is designed to optimize interior volume and reduce turbulence, enabling high-output sub-bass performance in a compact package.


Key Features

• Powerful Output
Outstanding 123 dBZ maximum linear sound pressure level in a space-saving column form-factor.

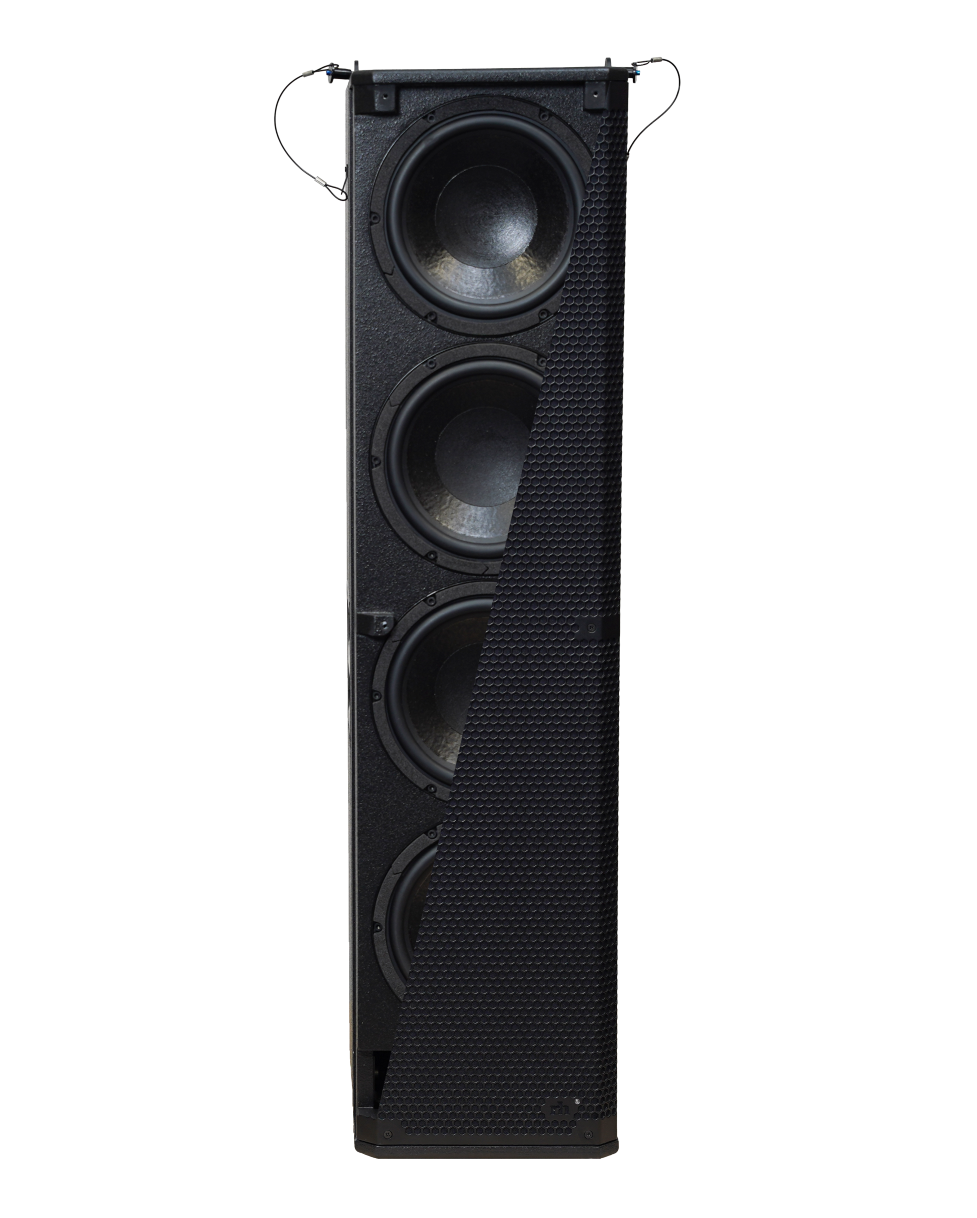

• Quad 8-inch Woofers for Excellent Bass Response
Sub-bass extension to 38 Hz with great vertical pattern control.

• State-of-the-Art Transducers
Four inside-outside woven voice coils with dual gap technology for long excursion. Extremely high motor-force delivers controlled, distortion-free performance.


Applications

• Ideal for applications with minimal space for subwoofers.

• A perfect solution for any application requiring high-performance sub-bass and a discreet form factor.

• Completely modular design allows ICLX-48S modules to be arrayed together with ICLX modules for ultimate flexibility

Technical Information
Sensitivity: 1.4 V (for rated power output)
Freq. Range: 45 Hz to 123 Hz (- 3dB)
38 Hz to 155 Hz (-10 dB)
Max SPL: 113.2 dBZ, 123.2 dBZpk
Measured at 2m half-space referred back to 1m whole-space with 1.5V RMS input signal, according to AES75-23.
Dispersion: Omni
Transducers: SSL8-24
Enclosure: 13 ply birch plywood
Grille: 16 GA powder-coated, plated steel
Mounting: 12 x M6 UMH points; 1 x 1-3/8″/35 mm pole socket.
RHANG-ICLX flybar.
HK-ICLX or HK-ICLX1 wall mount bracket.
Finish: Black (RAL9010), White (RAL9011), or Custom Color
Weight: 70 Lbs (31.8 Kg) Net
Dimensions: 9-1/2” w x 38-1/2” h x 13-1/4” d (241 mm w x 978 mm h x 337 mm d)
SA2000 Amplifier Specifications
Power Output: Two channels, 1000 watts, @ 8 ohm, ea. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage: 100-240 Volts, 50/60 Hz auto-switching
Power Consumption: Idle: 200 mW
1/8 Power: 480 W (onset of limiting)
1/3 Power: 1280 W (hard limiting)
Power Connector: Neutrik powerCON TRUE-1 In & Loop-out
Audio Connections: 2 x XLR-3, In & Loop-out, Analog and AES,
2x Ethercon Ethernet, Dante Primary & Secondary
Latency: 6.25 ms
User DSP: Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms
Software: RHAON II, RHAON 3
Max Input Level: +22 dBu, Analog: 0 dBFS digital
Network Connections: 2x Ethercon Ethernet, Dante Primary & Secondary
(Note: RHAON and Dante share a single or redundant ethernet network)
Temperature Limits: Max: 140 F / 60 C with no direct sun exposure
Min: -22 F / 30 C, leave unit on to keep interior warm below 32 F / 0 C
Compliance: Note: All analog inputs and outputs comply with AES Stand 48-2005 on interconnecting, grounding and shielding
