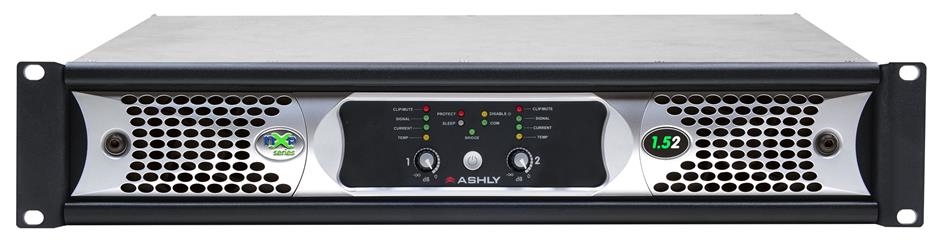

nXp1.52

2x 1'250 Watt/8 Ohm & 100V programmable output Network Amplifier mit DSP;

Class D
Leistung: 2x1'500W@2Ω/4Ω/70V, 2x1'250W@8Ω/100V

Vor Inbetriebnahme unbedingt DIP SWITCH SETTINGS auf Impedanz MODE (LOW Z oder 100V) überprüfen!

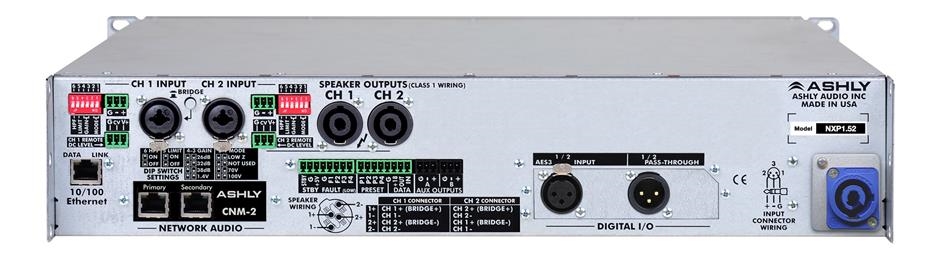

Ashly’s new line of nX Power Amplifiers feature lightweight, energy efficient Class D switching amplifier technology combined with a switch mode power supply. The nX amplifiers are available in three product families designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces and convention centers. nXp Series amplifiers add 32-bit SHARC DSP processing (with 48kHz & 96kHz sampling) as standard equipment for comprehensive audio processing, with built-in signal generator for test tone, and noise-masking. Plus precision load impedance monitoring on each amplifier channel output. nXp Series: (Standard Features) - 2 and 4-channel high-output, lightweight amplifiers with programmable output on each channel (Hi-Z or Lo-Z, selected via rear panel DIP switches) - Power-saving, Energy Management System (Ashly EMS) automatic <1W sleep-mode (defeatable) - Front panel power switch and level controls (can be disabled for security) - Front panel LEDs for temperature, current, signal, clip, mute, bridge mode, protect, sleep, and disable (of front panel controls) - Neutrik® Combo XLR - 1/4" TRS jack plus Euroblock input connectors - Neutrik® speakON® twist locking loudspeaker connectors for security, safety, and reliability - Rear panel DIP switches per channel for selection of high pass filter, limiter, input gain, and High-Z or Low-Z speaker output configuration - Remote DC level control on each input channel - Neutrik® powerCON® detachable AC mains connector - Switch mode power supply automatically detects 120V or 240V AC operation - Extensive protection circuitry, continuously variable cooling fans - Multiple independent internal power supplies provide increased channel separation and reliability - Ethernet port for use with control and monitoring of amplifier functions, with front panel COM activity LED - Serial data port for use with Ashly remote control devices, or optional RS-232 converter for third party controllers (INA-1) - Use Protea Software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation - Real Time Clock with Event Scheduler - Instant Standby Mode, 30% reduction in power consumption with on/off triggered by contact closure, software control, or event scheduler - Programmable power-on delay - Preset recall via contact closure, software control, remote control, or event scheduler - Aux preamp outputs, and fault condition logic outputs - Optional Cobranet® or Dante®* network audio and AES3 digital audio input with pass-through - Dynamics, gain, equalization, 2x4 or 4x4 matrix mixer, crossover, delay, metering, and signal generator functions for test and noise masking applications - Precision swept load impedance monitoring of each amplifier channel for quick and easy diagnosis of sound system problems remotely via Ethernet Class D Leistung: 2 x 1'500 Watt 2 Ohm & 4 Ohm, 2 x 1'250 Watt 8 Ohm, 2 x 1'250 Watt 100V Frequenzbereich: 20 Hz - 20 kHz, +/- 1.0 dB Masse: 483 x 89 x 428 mm Gewicht: 10.0kg
